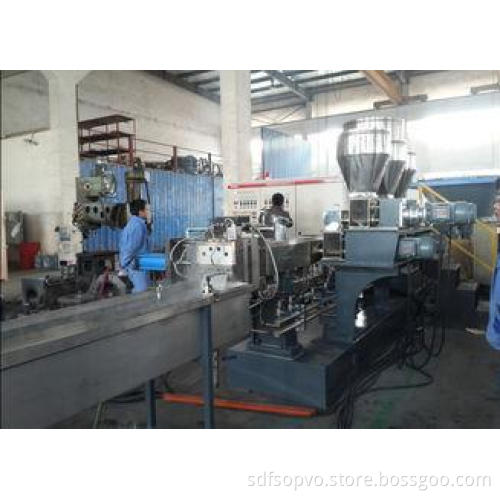

Co-rotating Parallel Twin Screw Extruder Plastic Compounding Line for Masterbatch

Quick Detail for Plastic compounding line of Co-rotating parallel twin screw extruder :

· Material of screw: W6Mo5Cr4V2,Bimetallic

· High-performance degassing

· See machine running when come to our factory

· Engineer supply when you buy the machine

· Design machine according to your material

· One year guarantee but offer all life after sales service

Description for Plastic compounding line of Co-rotating parallel twin screw extruder :

A. Features of co-rotating parallel twin screw extruder for filling and modification masterbatch compounding line:

1.modular structure and fully intermeshed screw of great self-cleaning ablity and degassing property

2.Bimetallic liner for extruder barrel,with superior wear resistance and corrosion resistance

3.Wide range of application by simply adjust configuration according to the detailed processing.

B. Applications fields of co-rotating parallel twin screw extruder for filling modification masterbatch compounding line:

Our parallel co-rotating twin screw extruder specially designed for filler modified resin which have excellent mixing performance,good self-cleaning performance and flexible modular configuration characteristivs which make them suitable for processing different types of material.

This screw of the co-rotation twin-screw exturder are composed of multi-sections. The raw material obtain optimization of compounding after undertaking high speed, high torque, compounding in the barrels, fixed feeding system, it can input glass fibers, additives,high density master batch etc.

Note: depending on different material properties, various downstream equipments are needed.

Filling modification:

CaCo3

talcum powder

barium sulfate

titanium pigment

ceramic powder

Wood flour/plant fiber

Other inorganic filler

Reinforce modification:

short glass fiber

long glass fiber

carbon fiber

Other whisker

Degradation master-batch

Other special functions master-batch

Blending modification:

thermoplastic material/TPE

polymer alloys

Cable material :

PVC cable material

zero halogen cable material

PE TR-XLPE,NDH

PE cross-linking cable material

Special cable material

C. Specifications of co-rotating parallel twin screw extruder for filling and modification masterbatch compounding line:

Technical parameter of TSSK series masterbatch compounding line (normal)

Model	TSSK-20	TSSK-30	TSSK-35	TSSK-50	TSSK-65	TSSK-72	TSSK-92
Screw diameter(mm)	21.7	30	35.6	50.5	62.4	71.2	91
Rotary speed(rpm))	600	400	400/600	400/500	400/500	400/500	400/500
Mainmotor power(kw)	4	11	11/15	37/45	55/75	90/110	220/250
L/D	32-40	28-48	32-48	32-48	32-48	32-48	32-40
Capacity(kg/h)	2-10	5-30	10-80	20-150	100-300	300-6000	600-1000

Technical parameter of TSSK series masterbatch compounding line (high torque)

Model	50B	65B	75B	75D
Screw diameter(mm)	50.5	62.4	71.2	71.2
Rotary speed(rpm)	500/600	500/600	500/600	500/600
Mainmotor power(kw)	55/75	90/110	132/160	200/250
L/D	28-48	28-48	28-48	28-48
Capacity(kg/h)	120-280	180-400	250-650	500-1200
