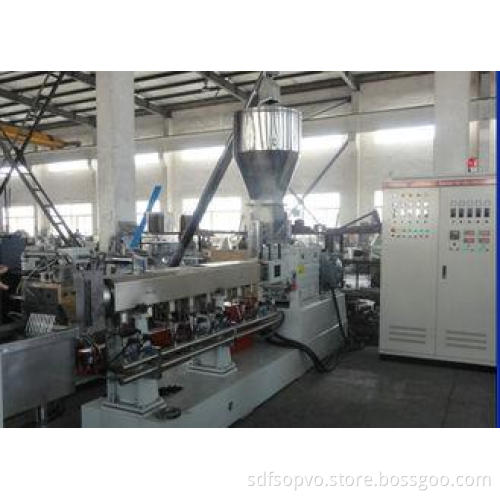

High Torque PET flakes granulation line for plastic bottle

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

High Torque PET flakes granulation line for plastic bottle recycling , Eco friendly

Quick Detail:

· Material of screw: W6Mo5Cr4V2,Bimetallic

· Screw components designed by computer aids is kneading type,has excellent self-cleaning function.

· High-performance degassing

· See machine running when come to our factory

· Engineer supply when you buy the machine

· Design machine according to your material

· One year guarantee but offer all life after sales service

Description High torque PET flakes granulation line for plastic bottle recycling machine:

A. Features of high torque PET flakes granulation line:

Our parallel co-rotating twin screw extruder specially designed for filler modified resin which have excellent mixing performance,good self-cleaning performance and flexible modular configuration characteristivs which make them suitable for processing different types of material.

B. Applications fields of PET flakes granulation line:

This high torque PET flakes granulation line is applied in PET waste flakes granulation field.Through extrusion, cutting and dry process, the waste bottle will become to be pellets.The pellets are widely used in plastic industry, like sheet, and profile production.

It can carry out ideal viscosity of PET without complicated precrystallization dryer system.Oly a little IV will be reduced.It can improve IV in the condition of adding some suitable additive.

C．Process flow:

Spiral charger→main machine feeder with roots vaccum pump→hydraulic screen changer→water tank→gale dryer→pelletizer→vibration(optional)→wind transmission system→silo

D. Specifications of PET flakes granulation line:

Technical parameter of TSSK series co-rotating twin-screw extruder(normal)

Model	TSSK-50	TSSK-65	TSSK-72	TSSK-92
Screw diameter(mm)	50.5	62.4	71.2	91
Mainmotor power(kw)	37	55	110	250
Capacity(kg/h)	80-120	200-250	300-400	500-800

Technical parameter of TSSK series co-rotating twin-screw extruder(high torque)

Model	50B	65B	75B	75D
Screw diameter(mm)	50.5	62.4	71.2	71.2
Rotary speed(rpm)	500/600	500/600	500/600	500/600
Mainmotor power(kw)	55/75	90/110	132/160	200/250
L/D	28-48	28-48	28-48	28-48
Capacity(kg/h)	120-280	180-400	250-650	500-1200
