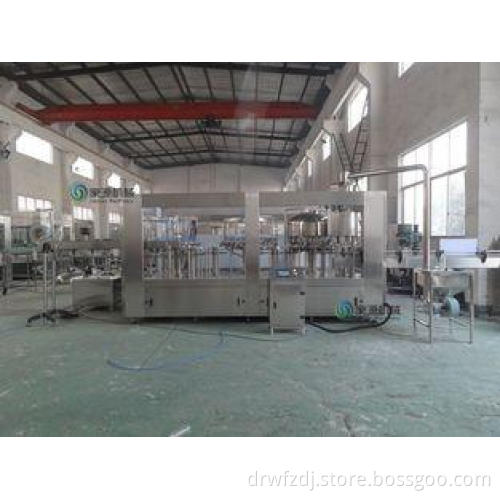

8.63W Aseptic Auto Soda PET Bottle Filling Machine SS304 Material
Quick Detail:
- Capacity: 12000-15000 bottles per hour
- Fully automatic, no bottle no filling, no cap machine will stop.
- CE, ISO certificate
- Sterilizing water rinser, pure water rinser, filler, capper 4-in-1 monoblock
- Designed power supply: AC/380V/50HZ/3PHASE
- Customizable
Automatic SUS304/316 15000BPH CGF32-32-32-10 4-in-1 mineral water bottle filling machine
Description:
Automatic 4-in-1 Mineral water bottle filling machine
Main Features
1).This Mineral water bottle filling machine is used to fill PET bottle pure water, mineral water, distilled water and other non gas beverage.
2). This 4-in-1 Automatic Mineral water bottle filling machine has the functions of chemical washing, bottle pure water washing, water filling, and bottle capping. This design reduces the time of water contact with outside. It improves the sanitation condition, increase the production capacity and economic efficiency.
3). It adopts hanging type conveying bottle structure to make changing different bottle sizes with less time and more convenient.
4).This mineral water bottle filling machine use high quality food grade stainless steel material. All the material contact with water is Stainless Steel 304 (& stainless steel 316L according to customer's demands).
5).The whole machine is equipped with advanced PLC controlling system. Key electric element is from international well-known brand such as MITSUBISHI, OMRON, and SCHNEIDER.
6). Filling Capacity 2,000bph to 20,000bph for your choice.
7). This Mineral water bottle filling machine model No. CGF32-32-32-10 filling capacity is 12,000-15,000bph.
Application
This machine can be used for filling non-carbonated liquid beverage with normal or middle temperature into PET bottles and capping it automatically.
- Pure water
- Mineral water
- Juice filling with normal temperature or middle temperature.
Specifications:
|
Model: |
CGF32-32-32-10 |
|
Capacity:500ml(b/h) |
12000-15000 |
|
Suitable Bottle Height(mm) |
150-320 |
|
Suitable Bottle Body Diameter(mm) |
φ50-φ100 |
|
Suitable Cap Shape |
Plastic Screw Cap |
|
Power: (W) |
8.63 |
|
Filling Temperature: |
Room Temperature |
|
Water Consumption for Washing Bottle(kg/hr) |
3500 |
|
Gas Consumption(m3/min) |
0.5 |
|
Size L×W×H (mm) |
3500×2200×2250 |
|
Total Weight:(kg) |
6000 |
|
Power Supply |
380V/50HZ |
Competitive Advantage:
- The three functions of bottle washing, filing and capping are composed in one body of the machine.
- The whole process is automatic, no bottle no filling, no cap, machine will stop.
- So this machine has three steps, first is washing, second is filling, third is sealing the bottle.
- Low power consumption, better material SUS 304, SUS 316.
- Small size, simple structure, low investment
- Auto complete line, need less worker.
