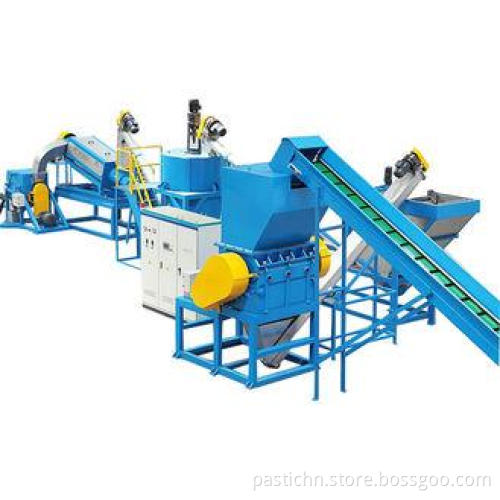

PET Bottle Flakes Plastic Washing Line Plastic Recycle Machine
Quick Detail:
PET washing line
Surface moisture: max. 1%.
PVC content: max. 500 ppm.
Glue content: max. 4.000 ppm.
Applications:
PET washing line is mainly used for removal of label,bottle cap,sediment,oil,liquid residue and other dirties.
Description:
PET washing line is composed of garbage separation (automatic & manual), bottle & flake crushing, cold & hot washing & cleaning, flake dewatering & drying, dust & label removal, packing, etc.
The line is composed of bale breaker ,trommel separator,crusher,floating washer ,hot washer,high speed friction washer ,dewatering machine,dryer,label separator etc.
Raw material :packaged PET bottles ,PET bottles ,PET flakes.
Final product:
- Surface moisture: max. 2%
- PVC content: max. 500 ppm(According to your worker sorting)
- Glue content: max. 4.000 ppm (Flakes included)
- Label content: max. 500 ppm(According to your worker sorting)
- HDPE / PP content: max. 500 ppm
- PET dust: max. 0.1 %
- Metal content: max. 50 ppm
Specifications:
|
Capacity |
300kg/h |
500kg/h |
1000kg/h |
2000kg/h |
|
Item |
Qty:(Set) |
Qty:(Set) |
Qty:(Set) |
Qty:(Set) |
|
Bale breaker |
― |
― |
1 |
1 |
|
Belt conveyor |
― |
― |
1 |
1 |
|
Trommel separator |
― |
― |
― |
1 |
|
Belt conveyor |
― |
― |
― |
1 |
|
Label remover |
― |
― |
1 |
1 |
|
Manual sorting table |
― |
― |
1 |
1 |
|
Belt conveyor |
1 |
1 |
1 |
2 |
|
Wet Crusher |
1 |
1 |
1 |
2 |
|
Screw feeder |
1 |
1 |
1 |
1 |
|
Hot washer |
― |
1 |
1 |
1 |
|
Screw feeder |
― |
1 |
1 |
1 |
|
Hot washer |
― |
― |
1 |
1 |
|
Screw feeder |
― |
― |
1 |
1 |
|
High speed friction washer |
1 |
1 |
1 |
1 |
|
Floating washer |
2 |
2 |
2 |
3 |
|
Dewatering machine |
1 |
1 |
1 |
1 |
|
Pipeline dryer |
― |
― |
1 |
1 |
|
Label separator |
― |
― |
― |
1 |
|
Storage hopper |
1 |
1 |
1 |
1 |
Competitive Advantage:
1. High automation level, try best to reduce your cost on labor and ensure high processing capacity.
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 or 316 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect.
5.Siemens contactor,RKC temperature controller
Polestar Machinery a professional factory for manufacturing series waste plastic recycling equipment (PET bottle recycling; PE/PP film,bags recycling, HDPE bottle /PP barrel recycling, and PP PE film pelletizing ,PP PE flakes pelletizing ,PP/PE/PVC corrugated pipe extruder etc).
If you want more details of our PET bottle washing machine/waste plastic recycling machine/ plastic pelletizing line, please do not hesitate to let me know!.Welcome to our factory!
