Hand 3 Crank Manual Hospital Beds Medical With 4-Part Bedboard , Crank Manual Bed
Quick Detail:
This high quality hospital bed manual is with 4-part bedboard
This hand crank manual sick bed has the Al-alloy side rails
The high quality manual home care bed has the Central-controlled braking system
Applications:
1. for hospital ICU room
Specification:
|
Overall size |
2150*1050*(460-750) mm |
|
Bed Frame |
The manual hospital beds is made of cold-rolled steel plate, treated by electro-coating and powder-coating |
|
Headboard/footboard |
ABS |
|
Bedboards |
4-part steel |
|
Handrails |
6-rank al-alloy side rails |
|
Bed base |
Steel frame |
|
Wheels |
Four silent wheels with cross brakes, φ125mm |
|
Weight load |
Fully tested sturdy construction capable of taking a maximum user weight of up to 250kg |
3-function:
|
Backrest max upward angle |
75° |
|
Footrest max upward angle |
40° |
|
Height adjustment |
460-750mm |
Standard Accessories:
|
Headboard/Footboard |
1set |
|
Side Rails |
1set |
|
Bed Frame |
1 set |
|
Bedboard |
1 set |
|
Wheels |
1 set |
|
Patient Name Card |
1 piece |
|
IV Pole Holder |
4 pieces |
|
IV pole |
1 piece |
|
drainage bag holders |
2 pieces |
Competitive Advantage:
- We produce most bed parts ourselves to control quality at every procedure
- Advanced bed part molding machines, advanced welding technology and advanced anti-rust treatment techniques.
- Perfect treatment on bed details
- Suitable package to ensure goods safety and save container space
- Fast and on-time delivery
- High-efficient After-sales service
- Powerful OEM capacity
- More than 10 years’ manufacturing experience

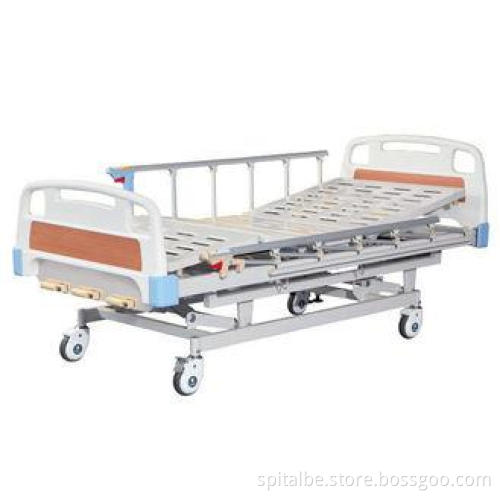

Photos of the high quality manual bed:
Why us!!!
The Quality We Provide - Outstanding Quality Assurance
Control from material:
•All bolts and screws are of SS material
•Mild steel ERW rectangular tubes or sheets 1.2-2.0mmthickness, meet EU standard
•Plastic material is of ABS only. Durable and Sturdy. At least 10 years lifetime. Different colors for options.
Control from production process:
•We finish all parts with our own equipment; all process would be supervised under QC department
•Anti-rust treatment procedures: pickling, phosphorization, Electro-coating, Sand blasting meet international standard
•Baking at high temperature after power coating to ensure the paint finish
Control from inspection:
•Process inspections after cold working, acid washing, powder coating and assembling
• Final inspection before loading
Warranty:
1) 1% free parts of total quantity will be provided together with goods
2) The product that is damaged or fails to normal work really due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawing from company. Beyond the maintenance period, we will charge the accessories, but the technical service is still for free.
FAQ:
Q: 1. what is the lead time?
A: Normally 28 days
Q: 2. is it the color on headboard/footboard and abs side rail optional?
A: We can make the color as per your requirement based on bulk purchasing.
Q: 3. What kind of motors optional?
A: Linak, L&K, Timotion, or Chinese motor optional
Q: 4. Can you put our logo on beds?
A: Yes, please provide the finished design of your logo, we will make it into stickers
Q: 5. how is your warranty?
A: For motors, 2 year; for bed, 1 year.
Q: 6 Do you accept OEM service
A: Yes, OEM service available, please provide your drawing and detailed specification.
Q: 7 can do produce beds with our voltage and plug?
A: Yes
