Basic Info
Basic Info
Place of Origin: jiangsu province,china
Product Description
Product Description

Equipment Introduction


1Features:

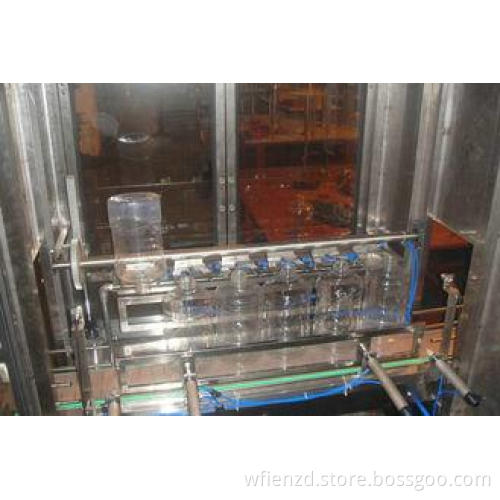

XGF4-4-1 type modular washing, filling, sealing the straight line is designed for 5L plastic bucket cleaning, filling, capping production equipment. Since the introduction of advanced production lines and sophisticated technology, with a high degree of automation machine, adaptable, easy operation, safety and good performance, and its advanced nature of similar products in the domestic industry in a leading position. This production line consists of automatic linear cleaning, automatic linear filling and automatic linear capping, conveyor components.
5L automatic filling machine is suitable for drinking water equipment for a variety of shaped bottles, filling volume is adjustable, its technical level ahead of the domestic industry with similar products.THE Main technical parameter:
Production capacity: 400 bph
Filling capacity: 4L
Number of filling heads: 4
Clean the heads: 4
Capping heads: 1
Bottle Size: Various shapes PVC, PP, PET plastic bottles
Filling accuracy: 4L 5%
Air pressure: 0.6Mpa
Air consumption: 50L/min
Filling with water: 2m3 / h
Cleaning water: 0.6m3 / hTotal power: 2.2KW
Dimensions: Approximately 4800 * 1000 * 2200mm
Weight: about 1700kg

Electrical configuration:

Number

Name

Product brand

Producer

1

SUS304 Stainless steel

Pohang

Korea

2

Drive motor

Feituo, Sanli

Huangyan

3

Pump

Lingxiao

Guangdong

4

Width 150mm plastic chain conveyor system

Wenzuan

Shanghai

5

PLC Programmable controller

Xinje

Taiwan

6

Contacts

Schneider

France

7

Photoelectric, proximity sensor

Autonics

Korea
