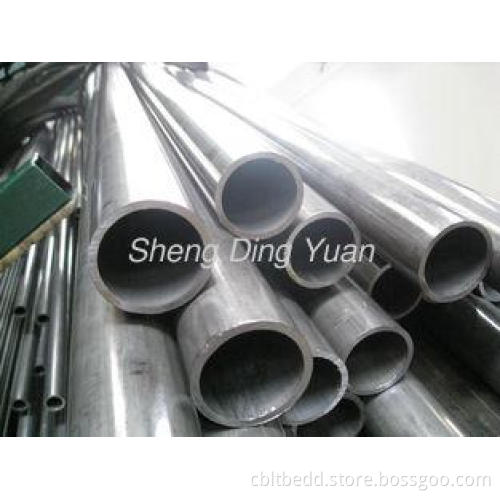

ASTMA519 Seamless Steel Oil Delivery Pipe , SAE1010 Bao Steel Pipe
Specifications:
Tube dimensions for Seamless carbon steel tubes-ASTMA519
Outside diameter ranges from 4 to 60 mm and wall thickness ranges from 0.5 to 7mm. Precision steel tubes are delivered according to EN 10305-1, DIN 2391, BS 6323/4,ASTM A519 and JIS G3445.Delivery Condition:BK,BKW,BKS,NBK,GBK.
Destription:
1.Seamless carbon steel tubes are made using the cold drawing process. Precision tubes are made from carbon steel from quality Bao Steel,XingCheng Steel,and HuaiSteel.
2. The tubes are high precision in tolerance,excellent surface brightness,no oxidization on the outer and inner walls after heat treatment,high cleanness of inside wall.
3. No deformation after cold bending,no crack after flaring and flattening.
Tolerance Table Of Steel Tube
|
NAME |
SCOPE(mm) |
GB (mm) |
DIN (mm) |
Enterprise control(mm) |
Special high-precision(mm) |
|
Out Diameter |
4-30 |
±0.1 |
±0.08 |
±0.05 |
±0.03 |
|
31-40 |
±0.15 |
±0.15 |
±0.05 |
±0.03 |
|
|
41-50 |
±0.20 |
±0.20 |
±0.08 |
±0.03 |
|
|
51-60 |
±0.25 |
±0.25 |
±0.08 |
±0.03 |
|
|
Wall thickness |
0.5-7 |
±10%,Min±0.12 |
±10% |
±10%,Min±0.05 |
±10%,Min±0.03 |
Steel grades for Seamless carbon steel tubes-ASTMA519
|
Standard |
Material |
|
EN10305-1 |
E215, E235, E255, E355,C45E, 30GrMo |
|
DIN2391 |
ST35, ST45, ST52, ST37.4 |
|
BS6323/4 |
CFS3,CFS4,CFS5,CFS8 |
|
ASTMA519 |
SAE1010,SAE1020,SAE1045 |
|
JISG3445 |
STKM11A,STKM13A |
|
SAEJ524 |
SAE1010 |
Quality Control:
- Synopsis of Process Routing: Quality Carbon steel — Cold Drawn — Heat Treatment Without Oxidization (NBK Status) — Nondestructive Testing— Flushing The Internal Hole With Special Equipment Under The High Pressure —Dealing With Antirust Oil On Surface — Plastic Capping On Both Ends.
- The raw material we choosing:high quality Bao Steel,XingCheng Steel and HuaiSteel.Physical and chemical inspection will be made to make sure each batch is in qualified range. After piecing,each piece of tube is checked to be in permitted size deviation,this can garantee higher thickness tolerance and concentricity.
- Production process quality control: We use the domestic first-class drawing machine,the production process is controlled with high hardness alloy internal and external matrix,so the product dimensions tolerance and ovality are strictly controlled in high level.Through the first, middle and last process inspection to ensure product quality.
- Inner and Outer Surface Cleaning: We adopt automatic inner surface cleaning machine, rotating brush cleaning and high pressure oil flushing to clean the inner and outer surface.The new steel tube production craftsmanship can effectively remove all particulate attached to the inner and outer surface of tubes and thus achieving the utmost surface cleaness and polishness.
- Finished tube anti-rust oil plating: We adopt high pressure spray plating method, the antirust oil is plated by high pressure jet after ten passes of filtering and one pass of precipitation to safeguard the tubes’ outer and inner surface cleaness and polishness.
Applications:
Precision tubes are used in hydraulic system,automobile,mechanical parts and in the occasion where the high precision,brightness,cleanness and mechanical properties of the tube are required.
Competitive Advantage:
- Certificate we awarded:TS 16949
- Our typical customer: Continential Contitech,Benteler.
- We have passed BMW’S review.
- We have been cooperating with many auto parts manufacture,our tubes are widely used in BMW,Volkswagen,and other brands.
- 400 tons precision steel tubes stock capacity,this make our delivery time short and timely.
