Precision Carbon Steel Mechanical Tubing , Black Phosphated Hydraulic Tube
Speficification:
- Size:OD4mm-60mm,TH0.5mm-7mm
- Standard:EN10305-4 /DIN2391/C
- Material:ST35,ST37.4,ST37,ST45,ST52,ST52.4,E235,E255,E355,SAE1010,SAE1020.
- Delivery State:NBK+ Black phosphated
- Raw material:Bao Steel,Huai Steel,XingCheng Steel with good quality.
- Length:5.8m,6m.
- Package:Bundles or wooden cases,with caps of ends.
Features:
- Surface Anti-rust:good property of antirust,both outside and internal tube surface flushing with anti-rust oil.
- Surface Color: Bright black color is homogeneously distributed on the tube surface.
- Surface quality:very smooth and bright without oxide scale,pock,strach,crack and other defects..
- Surface Cleaness:clean without iron scrap,dust,better for hydraulic system life.
- Mechanical properties:better extending rate and strength property,after bending with no deformation,after flattening and flaring process with no crack.
- Raw material: Precision tubes are made from carbon steel from quality Bao Steel,XingCheng Steel,and HuaiSteel.
- Testing:Flattening test,Flaring test,tensile strength test,hydraulic pressure test are made for each batch of hydraulic tubing.
Mechancial properties for Precision Carbon Steel Mechanical Tubing
|
Mechanical properties at room temperature |
|||||||||||||
|
Steel grade |
Minimum values for the delivery conditiona,b |
||||||||||||
|
Steel name |
Steel number |
﹢CC |
﹢LCC |
﹢SR |
﹢Ad |
﹢N |
|||||||
|
Rm |
A |
Rm |
A |
Rm |
ReH |
A |
Rm |
A |
Rm |
ReH |
A |
||
|
MPa |
% |
MPa |
% |
MPa |
MPa |
% |
MPa |
% |
MPa |
MPa |
% |
||
|
E215 |
1.0212 |
430 |
8 |
380 |
12 |
380 |
280 |
16 |
280 |
30 |
290 to 430 |
215 |
30 |
|
E235 |
1.0308 |
480 |
6 |
420 |
10 |
420 |
350 |
16 |
315 |
25 |
340 to 480 |
235 |
25 |
|
E355 |
1.0580 |
640 |
4 |
580 |
7 |
580 |
450f |
10 |
450 |
22 |
490 to 630 |
355 |
22 |
Synopsis of Process Routing: Cold drawn and bright NBK seamless steel tube is used as the tube to be phosphated. The phosphated is realized with the imported chemical fluid to form a black film. The antirust oil is absorbed by means of the micro pore on the film to prevent from the rust. The caps are covered at two ends of tube to prevent from the dust.
Inner and Outer Surface Cleaning: We adopt automatic inner surface cleaning machine, rotating brush cleaning and high pressure oil flushing to clean the inner and outer surface.The new steel tube production craftsmanship can effectively remove all particulate attached to the inner and outer surface of tubes and thus achieving the utmost surface cleaness and polishness.
Main Application: used in hydraulic system, shippment industry,nested card connector (pipe joints) with matching.
Production Line:
Production Equipment:

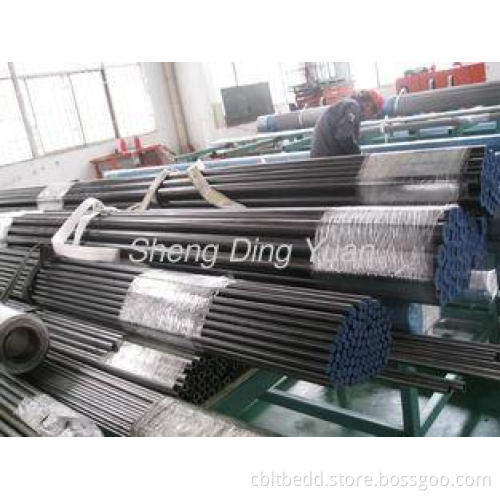

Packing and loading:
Laboratory Testing:
Our Customer:
Certificate Approved:
