ST35 , ST37.4 Black Carbon Steel Hydraulic Tubing / Pipe For Shippment Industry
Quick Detail:
Precision hydraulic steel tubing DIN2391-ST37.4 NBK OD10xTH1.5
No deformation after cold bending,no crack after flaring and flattening.
The tube has good property of antirust.
Description:
The steel grades of raw material used in our company are mainly ST35, ST37.4(10#), ST45 (20#), ST55 (35#), Ck45 (45#), ST52.4 (16Mn) etc. produced by Shanghai Baosteel Group.
Synopsis of Process Routing: Cold drawn and bright NBK seamless steel tube is used as the tube to be phosphated. The phosphated is realized with the imported chemical fluid to form a black film. The antirust oil is absorbed by means of the micro pore on the film to prevent from the rust. The caps are covered at two ends of tube to prevent from the dust.

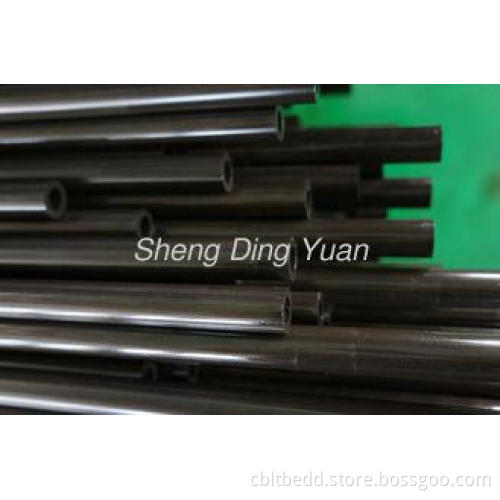

Main Features: color of steel tube: bright black. Color is homogeneously distributed on the tube surface. The tube has good property of antirust.
Applications:
Used in hydraulic system,including automotive Hydraulic power steering system, the clutch system, braking system, engine high pressure oil pipe, excavator hydraulic oil pipe,nested card connector (pipe joints) with matching,shippment industry.
Specifications:
Size:OD4mm-60mm,TH0.5mm-7mm
Standard:DIN2391
Material: ST35,ST37.4,ST37,ST45,ST52,ST52.4
Delivery State:NBK+Black phosphate.
|
Chemical composition(cast analysis)a |
||||||
|
Steel grade |
% by mass |
|||||
|
Steel name |
Steel number |
C |
Si |
Mn |
P |
S |
|
max. |
max. |
|
max. |
max. |
||
|
ST35 |
1.0305 |
0.17 |
0.35 |
≥0.40 |
0.025 |
0.025 |
|
ST45 |
1.0408 |
0.21 |
0.35 |
≥0.40 |
0.025 |
0.025 |
|
ST52 |
1.0580 |
0.22 |
0.55 |
≤1.60 |
0.025 |
0.025 |
|
Mechanical properties at room temperature |
|||||||||||||
|
Steel grade |
Minimum values for the delivery condition |
||||||||||||
|
Steel name |
Steel number |
BK |
BKW |
BKS |
GBK |
NBK |
|||||||
|
Rm |
A |
Rm |
A |
Rm |
ReH |
A |
Rm |
A |
Rm |
ReH |
A |
||
|
MPa |
% |
MPa |
% |
MPa |
MPa |
% |
MPa |
% |
MPa |
MPa |
% |
||
|
ST35 |
1.0305 |
480 |
6 |
420 |
10 |
420 |
315 |
14 |
315 |
25 |
340 to 470 |
235 |
25 |
|
ST45 |
1.0408 |
580 |
5 |
520 |
8 |
520 |
375 |
12 |
390 |
21 |
440 to 570 |
255 |
21 |
|
ST52 |
1.0580 |
640 |
4 |
580 |
7 |
580 |
420 |
10 |
490 |
22 |
490 to 630 |
355 |
22 |
Competitive Advantage:
- Flattening test,Flaring test,tensile strength test,hydraulic pressure test are made for each batch of hydraulic tubing.
- Internal surface with high cleaness and roughness.
- We passed TS16949 certificate.
- Main Customer:Contitech,Benteler.
- We have to cooperate with Volkswagen.
- We also have been reviewed by BMW.
