High Conductivity Casting PCB Copper Foil Roll , Copper Met
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Cable Shielding Copper Foil Roll For PCB Collector (Electrode Backing) Materials
Quick Detail:
|
Model No. |
LLF-750 |
LLF-1100 |
LLF-1300 |
LLF-1600 |
|
Foil Grade |
O, H14 |
O, H14 |
O, H14 |
O, H14 |
|
Foil Thickness |
0.006-0.02mm |
0.006-0.02mm |
0.006-0.02mm |
0.006-0.02mm |
|
Foil Width |
650mm |
1000mm |
1250mm |
1500mm |
|
Foil O.D |
Φ650mm |
Φ 650mm |
Φ 650mm |
Φ 650mm |
|
Slitting Width |
≥10mm |
≥10mm |
≥10mm |
≥10mm |
|
Slitting Speed |
0-250m/min |
0-250m/min |
0-250m/min |
0-250m/min |
|
Total Power |
13kw/380V |
18.5kw/380V |
18.5kw/380V |
26kw/380V |
|
Core I.D |
3", 6" |
3", 6" |
3", 6" |
3", 6" |
Description:
1. Grade: C1100 , C1020
2. Thickness: 0.005mm- 1.2mm
3. Width: 400mm max
4. Chemical Composition: C1100: Cu >99.90%
C1020: Cu >99.96%
C1220: Cu >99.97%; P 0.015-0.04%
5. Oxygen content: C1100: O < 500PPM
C1020: O < 50PPM
6. Temper: O, 1/4H, 1/2H, H
|
Item |
rolled copper foil |
|
Standard |
GB/T5231-2001,GB/T1527-2006,JISH3250-2006, JISH3300-2006,ASTM B152M,ASTM B187,ASTM B75M-02, ASTM B42-02,etc. |
|
Material |
C1100,C1020,C1220 |
|
Size |
Thickness:0.03mm-0.2mm Width:400mm max Length:as customers’ requirement. |
|
Surface |
bright |
|
Application |
Copper foil can be made to do all sorts of drawing and bending stress components,such as manufacturing pins, rivets,gasket,nuts,conduits,the barometer spring,screen, radiator parts,etc. |
|
Export to |
copper foil is mainly exported to the following countries : America,Australia,Brazil,Canada,Peru,Iran,Italy,India, United Kingdom,Arab,etc. |
|
Package |
Standard export package or as required. |
|
Price term |
EXW,FOB,CIF,CFR,CNF,etc. |
|
Payment |
L/C,T/T,etc. |
|
Certificates |
SGS&ISO&GL&BV,etc. |
|
Contact |
If you have any question,please feel free to contact me We promise your inquiry or requirements will get prompt attention. |
Applications for Copper Foil:
1. Electric and electric springs, switches
2. Lead frames
3. Connectors and oscillation reeds
4. PCB field
5. Communication cable
6. Cable armoring
7. Mobile phone main board
8. Ion battery production lamination with PI film
9. PCB collector (electrode backing) materials

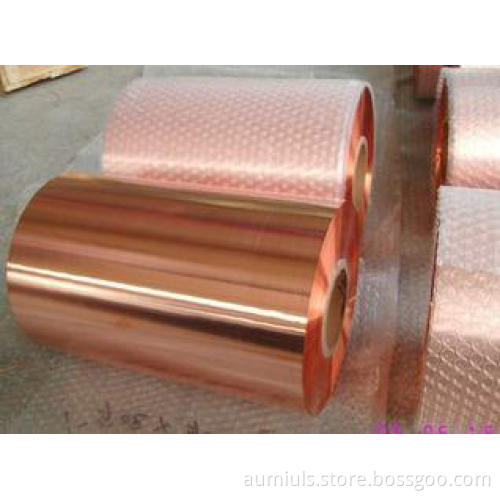

Pictures of Copper Foil
Manufacturing of Copper Foil:
Why to choose Zixu Shengye(Kunshan) as your supplier?
1. Since 1992, we have already occupied a lot of market in China.
2. Good reputation in Aluminum and Copper Areas.
3. Good relationship with the Chinese aluminium and copper mills.
4. Abundant economic strength.
5. Good experience and cooperation with big client, like ABB, Zixu Shengye is qualified supplier.
6. With Certificate ISO9001, ISO14001 and OHSAS 18001
7. Big Storage warehouse in Shanghai, clients can get the products at any time(24 hours each day).
8. Zixu has own factory to make further process to cut the coils to be detailed strip and plates as clients’ demand.
9. Good communication skills, and good service and understandings for customers’ needs.
10. Delivery the goods on time.
11. Perfect quality of the goods with all the mill certificate.
12. Strong Sea-worthy package.
