Marine 5083 Mill Finish Aluminium Coils , 2 mm Thick Alumin
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Marine Grade 5083 Mill Finish Aluminum Strip Coils For Philippines Electrical Parts
Quick Detail:
|
Mill Finish Aluminum Strip Coils/Sheet |
|
|
Grade and Temper |
Alloys: 1050, 1100, 3003,3005,3105, 5005,5052,8011,etc Temper: 0-H112 |
|
Widths |
35mm - 2,500 mm available |
|
Thickness |
0.3mm - 150 mm |
|
Length |
Max 9500mm |
|
Surface Treatment |
Perforation, Stucco Embossed, Slitting |
|
Coil Specifications |
I.D.: 405mm, 505mm O.D.: 800mm - 1270mm |
|
Packing Detail |
Wooden pallet either eye to wall or eye to sky |
|
Application |
Building material such as metal ceiling, roofing, wall cladding panel; Automobiles, etc. |
Description:
Specifications of Aluminum Strip Coils:
1. Grade
1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3102 3104 3105 3A21 etc.
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
6000 Series: 6061 6063 6082 6A02 etc.
7000 Series: 7050 7075 7475 etc.
8000 Series: 8006 8011 8079 etc.
2. Thickness: 0.20mm-320mm
3. Width: 8mm-2400mm
4. Length: 1220 or per customer's request
5. Temper: all tempers, H1X, H2X, H3X, O, HXXX
6. Continuous casting and hot rolled both available
Chemical composition
|
|
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
|
1060 |
0.250 |
0.350 |
0.050 |
0.030 |
0.030.- |
- |
0.050 |
0.030 |
99.6 |
|
1070 |
0.200 |
0.250 |
0.040 |
0.030 |
0.030 |
- |
0.040 |
0.030 |
99.7 |
|
1100 |
Si+Fe:0.95 |
0.05-0.2 |
0.050 |
- |
- |
0.100 |
- |
99.0 |
|
|
3003 |
0.600 |
0.700 |
0.05-0.20 |
1.0-1.5 |
- |
- |
0.100 |
- |
remains |
|
3105 |
0.600 |
0.700 |
0.300 |
0.30-0.8 |
0.20-0.8 |
0.200 |
0.400 |
0.100 |
remains |
|
5052 |
0.250 |
0.400 |
0.100 |
0.100 |
2.2-2.8 |
0.15-0.35 |
0.100 |
- |
remains |
|
5154 |
0.250 |
0.400 |
0.100 |
0.100 |
3.1-3.9 |
0.15-0.35 |
0.200 |
0.200 |
remains |
|
5754 |
0.400 |
0.400 |
0.100 |
0.500 |
2.6-3.6 |
0.300 |
0.200 |
0.150 |
remains |
|
5182 |
0.200 |
0.350 |
0.150 |
0.20-0.50 |
4.0-5.0 |
0.100 |
0.250 |
0.100 |
remains |
|
6061 |
0.3-0.7 |
0.500 |
0.100 |
0.030 |
0.35-0.8 |
0.030 |
0.100 |
- |
remains |
|
8011 |
0.5-0.9 |
0.6-1.0 |
0.100 |
0.200 |
0.050 |
0.050 |
0.100 |
0.080 |
remains |
|
8079 |
0.200 |
0.300 |
1.0-1.6 |
0.100 |
0.6-1.3 |
0.100 |
0.250 |
0.100 |
remains |
Manufacturing of Aluminum Strip Coils:
Ingot + Master Alloy → Melting → Holding Fumace → Continuous Casting → Cold Rolling(Mediate Annealing) →
Tension Leveling → Aluminum coil
Application of Aluminum Strip Coils:
1. Radiator
2. Condenser
3. Insulation Material
4. Construction

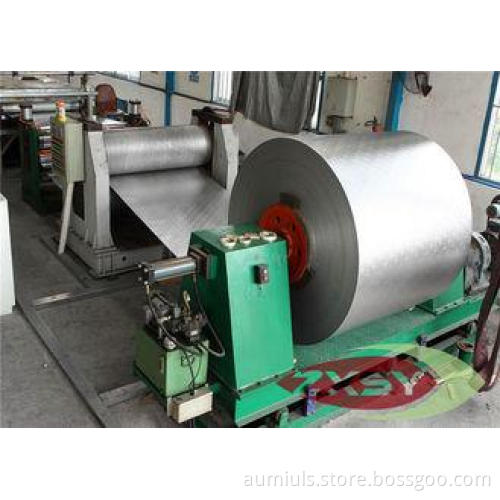

Picture of Aluminium Strip Coils
Why to choose Zixu Shengye(Kunshan) as your supplier?
1. Since 1992, we have already occupied a lot of market in China.
2. Good reputation in Aluminum and Copper Areas.
3. Good relationship with the Chinese aluminium and copper mills.
4. Abundant economic strength.
5. Good experience and cooperation with big client, like ABB, Zixu Shengye is qualified supplier.
6. With Certificate ISO9001, ISO14001 and OHSAS 18001
7. Big Storage warehouse in Shanghai, clients can get the products at any time(24 hours each day).
8. Zixu has own factory to make further process to cut the coils to be detailed strip and plates as clients’
demand.
9. Good communication skills, and good service and understandings for customers’ needs.
10. Delivery the goods on time.
11. Perfect quality of the goods with all the mill certificate.
12. Strong Sea-worthy package.
