500-3000kg/h Washing Waste Tyre Recycling Machine With Full
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhangjiagang |
|---|

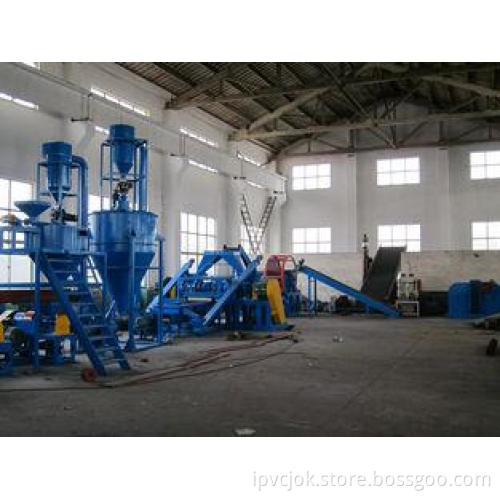

500-3000kg/h Washing Waste Tyre Recycling Machine With Full Automatic / Semi-Automatic
Descrition:
Waste tire recycling line is specialized for recycle waste tire, and produce rubber granule(powder),same time separate the steel wire and nylon fiber
The recycling line first pull out big steel wire ring, and then cut it into big piece. After that, shredder machine will crush waste tire into 5cm rubber crumb. After miller machine, it will become 1-2mm rubber granule and small steel, nylon fiber mixture. So that the steel wire separator and fiber separator can separate the small steel and fiber out from the rubber granule. After double step steel and fiber separator, the rubber will become pure granule. If need produce powder, just increase rubber grinder behind the miller, so that the machine can produce min 100 mesh powder. After auto packing system, the final product will be finished.
The recycling line can help environment protection, and produce useful material from waste product.It can produce rubber tile ,rubber runway, asphalt road and so on..
The production line is used for washing and recycling of PE, PP films. Coordinating the
Composition
Production Line Configuration:
Pull out steel ring-------cut into big pieces-------shredder to 5cm crumb-------mill to rubber granule-------separate small steel-------separate nylon fiber-------rubber grinder----------final product rubber powder.
Equipments List
|
NO |
Name |
Quantity |
Power KW |
|
1 |
DL-1200 Steel Wire puller |
1 |
5.5 |
|
2 |
300 Tyre Cutter |
1 |
5.5 |
|
3 |
800 Conveyor |
1 |
1.5 |
|
4 |
800 Tyre shredder |
1 |
48 |
|
5 |
650 Conveyor |
1 |
1.5 |
|
6 |
280 Taper Milling |
2 |
116 |
|
7 |
3800 Vibrating screen |
1 |
1.5 |
|
8 |
500 Iron separator |
1 |
1.5 |
|
9 |
20 Metal separator |
1 |
0.55 |
|
10 |
40 Screw Conveyor |
2 |
3 |
|
11 |
Coarse Fiber collection |
1 |
5.5 |
|
12 |
55 Wind conveyor |
1 |
5.5 |
|
13 |
1600 Fibre separator |
1 |
4.75 |
|
14 |
55 Wind conveyor |
1 |
5.5 |
|
15 |
1200 Storage |
1 |
0.75 |
|
16 |
70 Screw conveyor |
1 |
3 |
|
17 |
280 Micro Grinding |
6 |
184.5 |
|
18 |
185 Wind conveyor |
1 |
18.5 |
|
19 |
1300 grader |
1 |
6.25 |
|
20 |
36 return conveyor |
1 |
1.5 |
|
21 |
Control box |
3 |
|
Features
1)Process waste tire, decrease the waste tire quantity
2) produce rubber granule or powder as new material for produce rubber product.
3) decrease cost of rubber product, and save material
4) Capacity: 500-3000kg/h
Competitive Advantage:
1: There are different capacity can be supplied:500 kg/h, 1000kg/h, 1500kg/h.
2: You can choose different devices according to your material.
3: According to your country condition, you can choose full automatic line or semi-automatic line.
4: You can purchase separate device based on your own conditions.
5: We providing turn-key project for you. Design-product-installment-testing.
Process:
