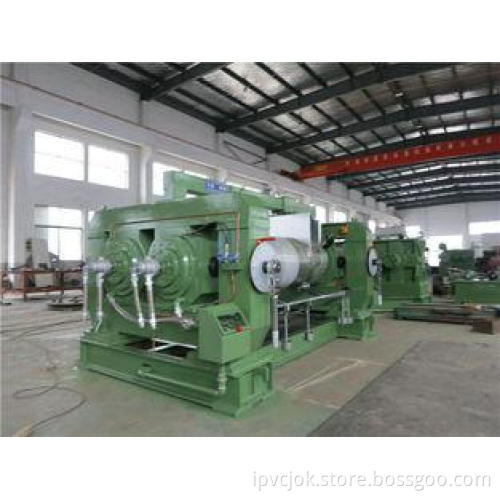

50HZ Electric PVC Open Mixing Mill Industrial Mixing Equipm

Descrition:

For masticating and kneading natural rubber, synthetic rubber, EVA or PVC
pellets with various kinds chemical material and warming the cold material
which shall be supplied to the calendar, embossing calender or hot presses.
This machine is used for mixing and kneading raw rubber, synthetic rubber,
thermoplastics or EVA with chemicals into even materials. The even materials can be fed to calender, hot presses or other processing machinery for making rubber or plastic products.

Rolls:
Manufactured from chilled cast iron, inside rolls are cooled by water or
heated by steam

Frames:
Manufactured from welded steel plates or high tensile cast iron for maximum rigidity

Bed:
One piece construction of welded steel plate or cast iron provides maximum
stability

Bushing:
1) An oil sealed type bushing, the bushing housing is manufactured from
cast iron, and the inside diameter is fitted with high lead bronze.
Designed with water circulation circuit for water cooling, reducing heat
generated between the roll neck and the bushing
2) The bearing type bushing is constructed of cast iron housing and high
strength bearing at inside diameter

Bushing lubrication:
Employs automatic circulated lubrication system

Roll gap adjustment:
1) Manual gap adjustment is standard
2) Powered gap adjustment is optional

Reduction gear box:
Three-step totally enclosed gear reducer is driven by bevel gear. Gears are lubricated by self splash lubrications system

Applications:

Two roll mill machine is mainly used for plasticating and mixing of rubber or plastics, warming and sheeting rubber compound, cracking and refining of reclaimed rubber.

Specifications:

General Specification

1-1.Roll Size : Φ610x2030mm

1-2. Mixed Raw Material : Plastic

1-3.Electric

1) Main Power : 380V x 50HZ x 3Φ

2) Auxiliary : 380V x 50HZ x 3Φ

3) Control Power : 220V x 50HZ x 1Φ

1-4. Utility

1) Cooling Water : 2 ~ 3 Kg/cm²

2) Steam Pressure : 5 Kg/cm²

2. Main Specification

2-1.Main Motor

1) Type : Totally Enclosed Cage Rotor

2) Power : A.C 220KW x 8P x 380V x 50HZ

3) Power Transmission : Gear Coupling

2-2. Reducer

1) Type : Un-Drive Type

2) Capacity : 90 KW

3) Ratio : 1/40.55

4) Gear Type : Single & Double Helical

5) Bearing : Roller Bearing

6) Material

(1) Case : Mild Steel Welding Structure

(2) Pinion : 20CrMnTiA

(3) Gear : 20CrMnTiA

(4) Gear Shaft : 20CrMnTiA

(5) Output Shaft :42CrMoA

7) Lubrication : Forced Circulation

8) Power Transmission : Gear Coupling

2-3. Frame and Cap

1) Type : Opened Top Type

2) Material : Mild Steel Welding Structure

2-4. Roll Parts

1)Roll

(1) Type : Bored Roll

Front Roll :Straight

Rear Roll :Straight

(2) Size : Φ610x2030L

(3) Material : Chilled Cast Iron

(4) Chilled Depth : 10~15 mm

(5) Hardness : HS 70 ±2

2) Roll R.P.M

(1) Front Roll : 16.9685 R.P.M

(2) Rear Roll : 18.4957 R.P.M

(3) Friction Ratio : 1/1.09

3)Nip Adjusting

(1) Type : By Hand

(2) Effective Roll Gap : Max.10mm

(3) Indicator : Memory Plate(Left & Right)

4) Journal Bearing

(1) Type : Spherical Roller Bearing

(2) Bearing Case : Cast Steel,ZG25

(3) Lubrication : Forced Circulation System

5) Temperature Control

(1) Cooling & Heating Method: Manual Type

6) Roll Drive

Motor——Gear Coupling——Reducer——Universal Joint----Rear Roll & Front Roll

2-5. Stock Guide:

1) Type : Fixed

2) Material : Steel Plate,Chrome plate.

2-6. Emergency Stop Device

1) Type : Hydraulic Show Brake

2) Operation : Push Button S/W---- 4Pcs

Rope S/W----Front Side 1Pc

Foot S/W----Front Side 1Pc

2-7. Bed

1) Type : Common Bed

2) Material : H-Beam

3) Institution: “J” Anchor Bolt

4) Acc'y : Tray (304 Stainless Steel)

2-8. Trimming Knife

1) Type : Manual Bar Type

2) Material : 45# Steel

3) Knife Q’ty : 4 PCS

2-9. Attached Equipment

1) Rotary Joint & Flexible: 1 set

2) Control Panel : 1 set

3) Taper Liner & Anchor Bolt: 1 set

2-10. Painting : As per your request

Competitive Advantage:

1. High security
2. Low noise
3. Energy saving
4. Easy to operate

Layout:

Details:
