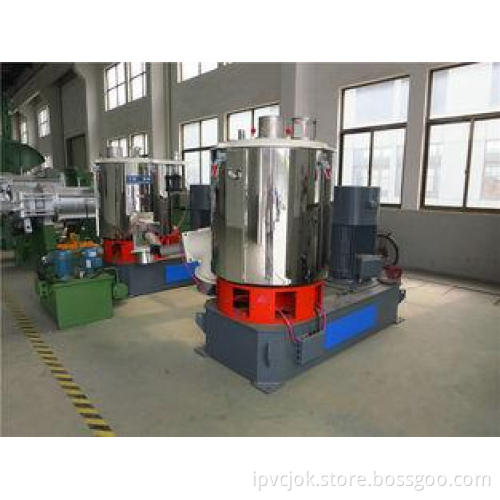

PVC 110Kw High Speed Mixers Machines With ZWZ Bearing , SHR

Descrition:
1. the inside barrel of Heating & Cooling Mixer are made of stainless steel; the outside baiTel of heating Mixer are also in stainless steel, It can resist the corruption of DOP and there is a ￠550mm stainless steel material adding bucket up the pot cover.
2. The Heating Mixer is equipped with 3-pc – type blades.
3. Electric beating device:equipped with temperature tesing device & warm accuse table.
4. The Main roller is sealed in 88888
5. the digital display (made in Changzhou)
6. Siemens contractor
7. the opening & material unloading of the cover adopts liquid pressure control system.
8. decompression starting device : It will decompress the electirc pressure when we start the machine ,It can protect the electric net.
9. Standard electric box 1 pc; step 1 pc , banisters bandrail 1 unit, air compressor machine 1 pc



Applications:

The mixer mainly used homogeneous mixture with PVC, all kinds of resins and other plastic materials.

It mixes and dyes the grain burden of PE, PP and other plastic materials, to dry the hygroscopicity resin forming the type before processing it.

The mixer is absolutely necessary supplement equipment in the front production line of the plastic production factory



Detailed Appendix:

1/ The motor: 110KW 980RPM Dazhong AC motor ;
2/ The inner barrel of mixer are made ​​of stainless steel (thickness of 8mm ) ;
The bottom of the barrel is made of stainless steel (thickness of 8mm) ;
The outermost barrel of heating mixer is packed with 0.8mm stainless steel plate
(DOP corrosion-resistant, easy to clean);
The mixier is equipped with a stainless steel hopper:150mm*600mm*340mm;
3/ The mixer adopts two-type stainless steel blades:425 RPM ;
The blade at bottom is slotted –type;
4/ The mainshaft is sealed by PTFE and skeleton oil(TTO made in Taiwan) ;
5/ The belt pulley :8 slots with 8 belts;
6/ The frame :welded by high-quality iron plate, surface is painted, strong and beautiful;
7/ The electric heating device, equipped with a temperature thermocouple and temperature control meter;
8/ The bearing:ZWZ bearing;
9/ The mode of pot cover opening and discharge : Pneumatic(to imitate Taiwan);
The discharge hole:￠180mm;
10/ The electrical box:
(1)Standard electrical box;
(2)Contactor : Delixi Contactor , famous brand in China;
(3)Digital display temperature-control meter ,made in Changzhou;
(4)star-delta starter.
11/ The output :200-250Kg /feeding amount.;


Specifications:

Competitive Advantage:

1. Stable performence
2. Advanced design
3. Convinient control
4.good quality
5.long service life
6.low price
