Drinking Water Electric Filling Machine for PET Bottle and Aluminum Can 220V / 380V 10KW
Quick Detail:
- Type: beverage machine for juice with pulp
- Condition: New
- Application: juice with pulp
- Packaging Type: Bottles,
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220/380V
- Power: 2-10KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Hyford
- Model Number: BRGF Series
- Weight: 3000-12000kg
- Certification: CE, ISO, SGS, BV
- After-sales Service Provided: Engineers available to service machinery overseas
- Material: High quality SUS304 stainless steel
- Filling Principle: Balanced Pressure Filling
- Number of Filling Heads: 12,18,24,32,40
- Shipment: by Sea/Train
Description:

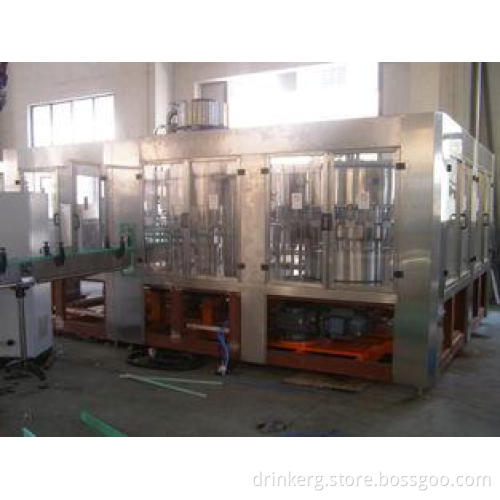

4-in-1 full automatic PET bottle beverage machine for juice with pulp
The machine consists four parts: 1 rinser 2. pulp filler 3. juice filler 4. capper.
Filling accurately with pulp floating evently, and capacity from 2000B/H up to 15000B/H.
(1) Material: Stainless steel 304 /316
(2) Capacity: 3000-21000B/H(can be improved)
(3) Bottles type: PET, PVC, PP, Glass bottles.
(4) Bottle Hight: 150-340 mm
Electrical parts:
PLC programming controller Mitsubishi/Siemens
Transducer Mitsubishi/Siemens
Touch screen monitor Mitsubishi/Siemens
Main electrical components SCHNEIDER
Pneumatic component AIRTAC/FESTO
Specifications:
Automatic Beverage Machine for Juice with Pulp--Main data
|
Model |
Washing Heads |
Filling Heads for juice pulp |
Filling Heads |
Capping Heads |
Production Capacity (b/h) |
Main Power (KW) |
|
BRGF18-8-18-6 |
18 |
8 |
18 |
6 |
4000 |
4.5 |
|
BRGF24-18-24-8 |
24 |
18 |
24 |
10 |
6000 |
5.5 |
|
BRGF32-24-32-10 |
32 |
24 |
32 |
10 |
10000 |
7.5 |
Competitive Advantage:
(1) Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost extent.
(2) Reasonable structured storage hopper and material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
(3) The storage hopper has the characteristics of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
(4) Sanitary filling head system is of umbrella structure, high filling speed.
(5) Perfect filling temperature control system.
(6) Return tank system has the function of supplying the material automatically.
(7) Perfect CIP system
