Rinser Filler Capper Monobloc Bottle Filling Machine for Li

Rinser Filler Capper Monobloc Glass Bottle Filling Machine for Liquid Beverage , Wine , Beer

Quick Detail:

• Type: Filling Machine
• Condition: New
• Application: beverages
• Packaging Type: glass bottles,
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 220/380V
• Power: 4KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Hyford
• Model Number: BPGF24-24-8
• Weight: 5000kg
• Certification: CE, ISO, SGS, BV
• After-sales Service Provided: Engineers available to service machinery overseas
• Material: High quality SUS304 stainless steel
• Filling Principle: Normal Pressure or Balanced Pressure or Hot Filling
• Capping: Screw Capping or Press Capping
• Number of Washing Heads: 24
• Number of Filling Heads: 24
• Number of Capping Heads: 8
• Capacity: 6000B/h for 500ml
• Shipment: by Sea/Train

Description:

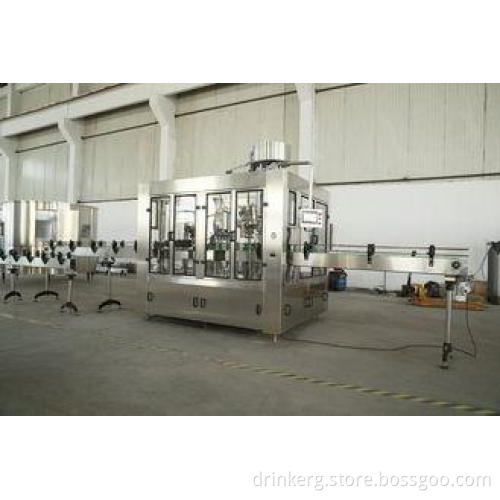

This automatic rinser-filler-capper monobloc for glass bottle has different models with different production capacity. It could also be customized as per client’s request. It is composed of rinser, filler and sealer in one unity, whole line is automatic.

2. With stainless steel construction, the automatic rinser-filler-capper monobloc for glass bottle will be lasting, corrosion-proof and easy cleaning.

3. The automatic rinser-filler-capper monobloc for glass bottle adopts imported key components, like central control PLC, pressure transmitter, and electromagnetic chaos pneumatic servo measurement level, to ensure the stability of liquid surface.

4. The automatic rinser-filler-capper monobloc for glass bottle adopts soft backing board unit to ensure a safe and stable automatically filling system. Once no bottle or unqualified bottle builds constant pressure, the valve will close automatically.

5. The part of filling setup has been designed with overload clutch as a protector. It will stop automatically when any accident happens.

6. The automatic rinser-filler-capper monobloc for glass bottle adopts accurate high-fluid level control, ensuring filling quality, and uses hermetically pressure filling with function of no foam and not spilling out.

7. The automatic rinser-filler-capper monobloc for glass bottle has a stable start-up, operating from low speed to high speed

Specifications:

Automatic Rinser-Filling-Capper Monobloc for Glass Bottle--Main data

Competitive Advantage of Rinser-Filling-Capper Monobloc for Glass Bottle

1. With little abrasion. Stable Transferring. Easy to change bottles.

2. With ring type pressure bearing hydraulic cylinder.

3. With high filling speed and exact liquid level.

4. Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

5. PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.

Hyford keeps 100% confident and try our best ability to satisfy customers' requirements with their selected products. Additionally, Hyford owns a professional aftersale customer service team. Therefore, If you have any inquiries or questions, please visit our store, have a look other products and leave your message. Your message will be highly appreciated! Welcome to Hyford!

Application of Rinser-filler-capper monobloc for glass bottle

Certificate of Rinser-filler-capper monobloc for glass bottle

Packing of Rinser-filler-capper monobloc for glass bottle

Tag: Rinser-Filler-Capper Monobloc for Glass Bottle
