Tea or Fruit Juice Beverage Filling Machine / Filling Plant

Fruit Juice Beverage Filling Machine / Filling Plant 3 In 1 for PET Bottle

Quick Detail:

• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 220/380V
• Power: 2.5KW
• Type: Filling Machine
• Condition: New
• Application: Juice, Tea Drink or Water Product
• Packaging Type: Bottles,
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Hyford
• Model Number: RCGF18-18-6
• Weight: 3000kg
• Certification: CE, ISO, SGS, BV
• After-sales Service Provided: Engineers available to service machinery overseas
• Material: High quality SUS304 stainless steel
• Filling Principle: Hot Filling or Normal Pressure Normal Temperature Filling
• Number of Washing Heads: 18
• Number of Filling Heads: 18
• Number of Capping Heads: 6
• Production Capacity: 6000B/h 500ml
• Shipment: by Sea/Train

Description:

(1) Juice filling machine/juice filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.

(2) The juice filling line is mainly used in the hot beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine. The whole process is automatic.

(3) The juice filling machine is used in filling hot beverage like juice, tea drink into bottles made of polyester and plastics. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

(4) The juice filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

(5) The advanced OMRON/MITSUBISHI programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

(6) It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, on the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

Specifications:

Automatic Juice washing filling and capping machine --Main data

Competitive Advantage of the Juice Filling Machine

1. Air Conveyor connects with bottle-in starwheels. Bottle neck holding transferred.

2. Clamp transferring technology varied bottle types.

3. With little abrasion. Stable Transferring. Easy to change bottles.

4. With ring type pressure bearing hydraulic cylinder.

5. With high filling speed and exact liquid level.

6. Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

7. The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles.

8. Easy to operate and maintain.

9. PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.

Hyford keeps 100% confident and try our best ability to satisfy customers' requirements with their selected products. Additionally, Hyford owns a professional aftersale customer service team. Therefore, If you have any inquiries or questions, please visit our store, have a look other products and leave your message. Your message will be highly appreciated! Welcome to Hyford!

Application of Juice Filling Machine

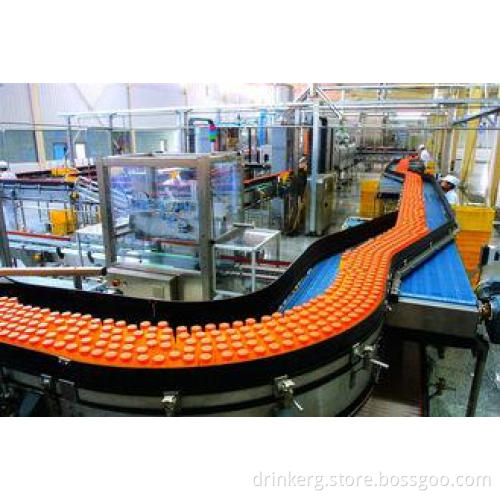

Manufacturing Line of Juice Filling Machine

Flow Chart of Juice Filling Machine, Juice Filling Line





Tag: juice filling machine
