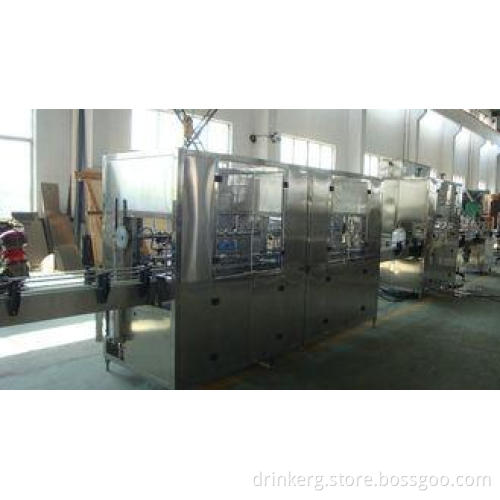

PLC Control Fully Automatic Filling Machine Soft Drink Fill

PLC Control Automatic Bottle Filling Machine , Soft Drink Filling Machinery

Quick Detail:

• Type: Filling Machine
• Condition: New
• Application: Water
• Packaging Type: Bottles,
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 220/380V
• Power: 2-5KW
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Hyford
• Model Number: CGF Series
• Weight: 5000-4000kg
• Certification: CE, ISO, SGS, BV
• After-sales Service Provided: Engineers available to service machinery overseas
• Material: High quality SUS304 stainless steel
• Filling Principle: Normal Pressure, Gravity Filling
• Number of Filling Heads: 4,8,12,20
• Shipment: by Sea/Train

Description:

• integrated washing filling capping
• bottleneck clamping
• Precision steady filling
• SUS 304
• world wide famous components

The series equipment is used in 5L water filling production. It is integrated by washing, filling and capping together. With well designed and good-looking appearance.

The whole machine is adopt transmission and bottleneck stuck transport technology. Its merits are synchronism, coherence, sanitary during bottle filling process.

It is aerodynamic and controlled by PLC and colorful touch screen. All the filling heads work at the same time. It has bottle-gripping device to make sure 100% filling accuracy rate. It also has intellectualized protection programme control.

Specifications:

Washing Heads: 3-18

Filling Heads: 3-18

Capping Heads: 1-6

Suitable Bottle Size: 3-7L PET Bottle

Capacity: 300-2000B/h

Competitive Advantage:

5L Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

The water filling machine was equipped with suspension type air conveyor and frequency control of motor speed.

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

Hyford keeps 100% confident and try our best ability to satisfy customers' requirements with their selected products. Additionally, Hyford owns a professional aftersale customer service team. Therefore, If you have any inquiries or questions, please visit our store, have a look other products and leave your message. Your message will be highly appreciated! Welcome to Hyford!
