Light Weight Orange Juice Machine / Juicer For Drink Shops

Light Weight Orange Juice Machine For Drink Shops , 40mm - 70mm Orange

Quick Detail:

Small Juicer,Stainless steel orange juicer,Orange Juicer XC-2000E-5

Stainless steel

Seamless join whole stainless steel body

Film Touchpad swith

Internal circuit board

Description:

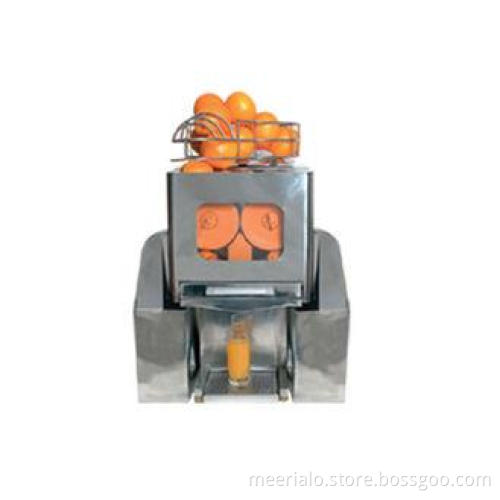

Small Juicer,Stainless steel orange juicer,Orange Juicer XC-2000E-5

The orange juicer design Reasonably, both exterior and interior structure are advanced. Where are the

original contact with the juice of stainless steel and high-grade plastic wear PC. Food is absolutely safe.

The compact machines reasonable, small size, light weight.

The machine apply to small drink shops, fruit shop, restaurants, hotels, bars, the Office of cards, tea -

and coffee-houses, a very wide range of applications. Also applies to the success of the family. With the

concept of raising the level of food consumption, as people of freshly squeezed juice will replace the

carbonated beverage drinks. It is a great market potential.

Applications:

Home, store , supermarket

Specifications:

Small Juicer,Stainless steel orange juicer,Orange Juicer XC-2000E-5

1. Power supply: 220--230V 50HZ /110--120V 60HZ

2. Power consumption: 370W

3. Size of orange required: 40--70mm

4. Output: 20 oranges/per minute

5. Machine Size : 450L*450W*600H mm (length*width*height)

6. Weight : 41 kg

7.Security: Satety cut out switches

Spare parts :

Two protruding balls ,blade compages ,concave squeezer ,peelers ,peeler seats ,plastic veils , pressing

screw , two concave balls .

Factory show :

Juicer application show :

Operation instruction:

1. Place the machine on the stable table, connect power plug to a grounded connector plug.

2. Safety check before you turn on the machine:

1) If the nut (4 units) screw down properly.

2) If place the knife rest correctly (press it on the bottom).

3) Place the cover on, screw down two side nut (2 units).

3. It can be used after turn on the power.

4．Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing

fresh juices,filtrate automatically

Before Operation:

1.You are not allowed to change the wire.

2.Check the parts in good condition, especially the cover in proper place(If it presses the switch) otherwise

it is difficult to start.

Procedure for operation:

Wash the oranges before putting in the juicer, put the oranges into the juicer continuously after starting the

juicer, the juice would flow and the remainder would be separated automatically into remaining collector.

After Operation:

The juicer should be washed completely after using, the power should be cut off. open the cover, take off

the blade, peeling and knaggy ball. wash them completely.

Clean instructions:

1．Please turn off the power and pull out plug before you clean the machine.Do use neutral washer.

2．Unpack the machine parts,first is stainless steel drawer, cover, knife rest(do not touch blade),peeling

implement(two side),compaction nut(four), ball(2+2.use dry material clean each parts after wash

them by water.

3. Please use dry material to clean the machine

4. Pack all parts after clean.

Competitive Advantage:

non-juncture whole stainless steel body

Touchpad Switch

Internal circuit board

304 Stainless steel juicer

OEM offer
