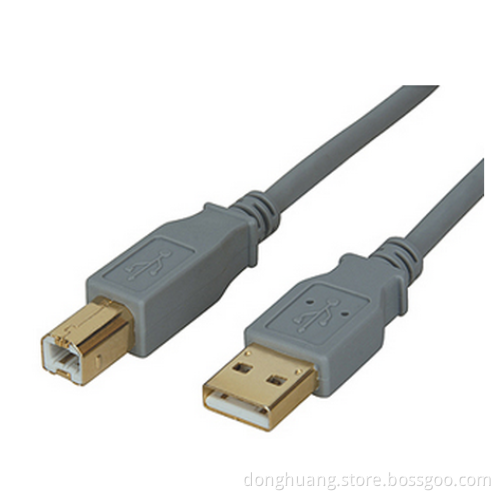

USB2.0 Printer Cable Am to Bm with UL Approval

Get Latest Price

Payment Type:: T/T

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Delivery Time:: 20 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T
Transportation:	Ocean,Land,Air

Product Description

Connector: USB A Male to B Male for Printer & Scanner
Cable Spec: USB 2.0
22~28AWG
Transfer Speed: 480Mbps

Specifications
USB A To B Cable For Printer & Scanner
High speed
Hot plug and play
Connector type: USB type A male, Mini B male

Features
USB2.0 A TYPE M/B TYPE M.
Optional gold and nickel plating.
Conductor: Pure copper
Edition: USB1.0, 2.0, 3.0 Optional
Gauge: 30AWG, 28AWG, 26AWG optional
Length: 0.5M, 1.5M, 2M, 5M, 10M, 15M, and according to the clients'requirement.
Jacket color: Black, Bule, Grey, Transparent, and according to the clients'requirement.

Electrical
100% open & short test
Hi-Pot: DC 300V 10ms
Insulation Resistance: 10M OHM /300V Min.
Contact Resistance: 0.01 OHM Max.
Shield up to 65% braid.
Working Temperature: -25oC ~ +85oC

Mechanical
Over mold: PVC 70PA UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min
