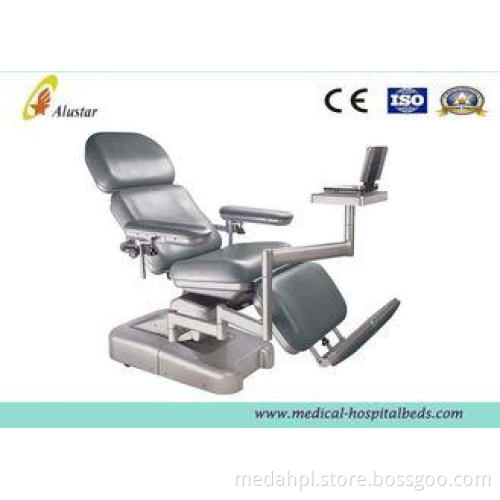

Two motor Adjustable hospital electric collection chair carbon steel (ALS-CE021)
Feature
Two motors control seat tilting,up and down respectively, another motor lets back and leg section move as a unite.Head board and arm board are manual adjusted.Special leg section extension by electrical. The chair can applies to various postures
Technical Parameters
Features
Two motors control seat tilting,up and down respectively, another
motor lets back and leg section move as a unite.
Head board and arm board are manual adjusted.
Special leg section extension by electrical.
Technical
Parameters
Chair dimension:1700mm(curve length) ×560mm
Height: 570mm(min.)---830mm(max.)
Head section turn: -15°~25°
Back section lift: -5°~70°
Leg section turn: -65°~ 5°
Foot support telescopic: 100mm
Foot support turn: 0~90°
Fixed angle of seat section :5°
Arm board swing out: 0~45°
Arm board height adjustment: 100mm
Arm board slide: 100mm
Arm board declining angle adjustment: -15°~10°
Arm board dimension: 450mm×160mm
Arm board Concave Radian: R108
Optional Accessory
Multimedia
