Full Automatic Spiral Duct Machine 33kw F2020 with hydrauli

Full Automatic Spiral Duct Machine 33kw F2020 with hydraulic pressure , 80mm - 2500mm Diameter

F2020 Full Automatic Spiral Tube Forming Machine for Forming 80mm-2500mm Diameter

Quick Detail:

1. Various Model: 4 models optional

2. PLC: Mitsubishi

3. Products Diameter: 80mm-2500mm

4. Raw Material Thickness: 0.4-2.0 mm

5. Technology Guarantee: Combination of both Western and Asian

7. Quality Prove: CE Certificate ISO SGS

8. Automatic System: Automatic material feeding , forming , lubrication , cutting , tube loading , safety alarm and urgent stop as well as acounting system

Description:

Our latest patent and the most advanced Spiral Tube former Machine,

which can make tube & pipe up to 2500mm,

material thickness up to 2mm. It’s the most idealist spiral duct machine to making tube, pipe, duct etc.

- Fully auto material feeding, forming, lubrication, cutting, tube loading

- Built with Mitsubishi PLC control panel and transducer, speed could be adjusted.

- With lubrication system, could lubricate automatically.

- Tension controlled by air pressure, auto brake.

- With air and hydraulic pressure system, save power.

- According to European standard, speed adjusted by pneumatic brake, which

Could be unanimous & synchronous

- With auto counting system and photoelectric tracking, pipe quantity could be counted.

- Different mould to meeting respective request, just change mould to

make various diameter.

- Complete with meter cutting length control, meter could be controlled and

Calculated; when reach set meter, could slit automatically.

- Combination of both Western & Asian Technologies on complete production and control.

- Complete with all safety features, auto alarm and urgent stop.

Applications:

This spiral machine is used for making Aluminum , Galvanized steel, Stainless steel spiral duct. This machine is widely used in HAVC system , air system, and industrial fields, as well as transportation field.

Specifications:

Competitive Advantage:

I. We are professional Spiral Tube Machines Manufacture sales directly

II. High Quality with reasonable price

III.CE Certificate

VI. We Provide the Technical Support all lifelong

FAQ:

1. Q: Are you a manufacturer or trading company?

A: Yes, we are a manufacturer.

2. Q: What certificate do you have?

A: We have ISO ,SGS and CE certificate.

3. Q: How does your factory do regarding quality control?

A: We have a special QC department in charge of products’ quality.

4. Q: How long is the warranty period?

A: All of our products have one year warranty.

5. Q: How much production capacity of your company one year?

A: This depends on your needs.

6. Q: What’s the main market of your company?

A: We have customers all over the world.

7. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to Shanghai by car.

8. Q: Can we visit your machine operating in your factory?

A: We have own workshop, and we are enthusiastically looking forward to your visit guidance and

business negotiations!

9. Q: How can we visit there?

A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.

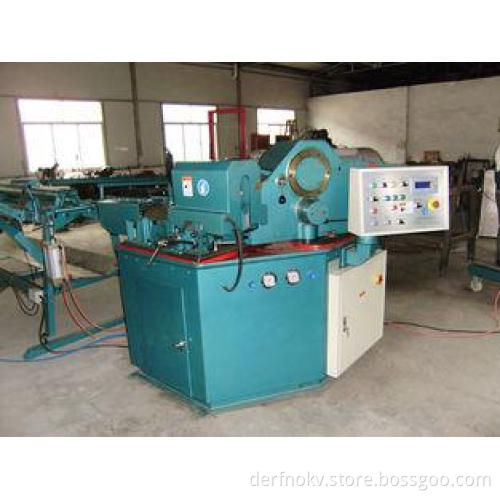

More Pictures for your reference:
