Low Noisy Smooth Surface Steel Pipe Straightening Machine ,
  • Low Noisy Smooth Surface Steel Pipe Straightening Machine ,
Low Noisy Smooth Surface Steel Pipe Straightening Machine ,

Low Noisy Smooth Surface Steel Pipe Straightening Machine ,

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Jiangsu,China
Product Description
Product Description

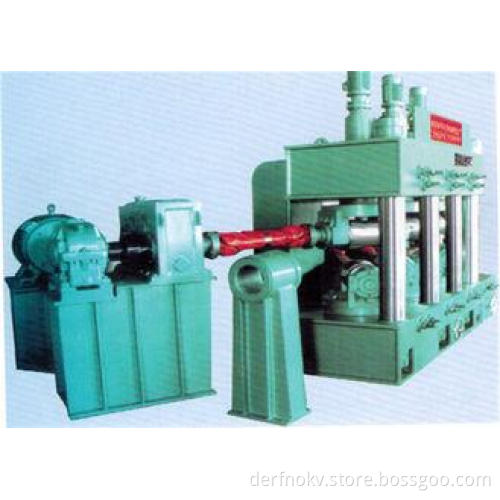

Low Noisy Smooth Surface Steel Pipe Straightening Machine , S - curve roller surface tube equipment

All Metal / Steel Pipes,low noisy,Seven Rollers Pipe Straightening Machine

Introduction:

Our pipe straightening machine is designed by Japan Electric Corporation KUSAKABE

in 1990s,and made in Taiwan.By the introduction of equipment and production plant for many

years in straightening, we have many practical experience in pipe straightening,innovation,

development and improve the policy to create more than 17 roller precision steel roller

straightening machine.

Our pipe straightening machine is able to roll over for the big S-curve roller surface, double drive rotary tube forward to achieve the desired rotation to promote straightness and precision straightening.Straightening without scars,without internal cracks,smooth surface.

A. Best machine for pipe straightening;
B. High speed,low noisy;
C. High accurate,easy to handle;

Specification:

No

Items

Parameters

Unit

1

Straightening

Pipe

Max.yield limit

580

N/m㎡

Diameter

50-160

mm

Max.pipe thickness

15

mm

2

Straightening Speed

6-26 M

M/min

3

Straightening Roller

Angle of Adjustment

24-30

Degree

Roll Space

950

mm

Throat Diameter

320

mm

Length

560

mm

4

Upper Roll Adjust Range

80-300

mm

5

Straightening Tortuosity for One time

≤1.5

mm

6

Rising Speed of Rising Roller(Inching)

0.21

mm/r

XCD 2.2-6-59

HJH/960P

2

Set

7

Speed Ratio

900r-70r

2

Set

Matching

55 Variable-frequency Drive

8

Main Transmission

2

Set

9

Main Motor

Model

Y315S-8

(B3)

Power

55*2

KW

Rotate Speed

750

r/min

Quantity

2

Set

10

Gear Case

2

Set

11

Layout of roller

2-2-2-1

12

Voltage

380V/50Hz

13

Dimension

8200*5800*3200mm

14

Weight

33000KG

FAQ:

1. Q: Are you a manufacturer or trading company?

A: Yes, we are a manufacturer.

2. Q: What certificate do you have?

A: We have ISO ,SGS and CE certificate.

3. Q: How does your factory do regarding quality control?

A: We have a special QC department in charge of products’ quality.

4. Q: How long is the warranty period?

A: All of our products have one year warranty.

5. Q: How much production capacity of your company one year?

A: This depends on your needs.

6. Q: What’s the main market of your company?

A: We have customers all over the world.

7. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to Shanghai by car.

8. Q: Can we visit your machine operating in your factory?

A: We have own workshop, and we are enthusiastically looking forward to your visit

guidance and business negotiations!

9. Q: How can we visit there?

A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.
