Single Head CNC Pipe Bending Machine hydraulic , steel bend

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu,China

Product Description

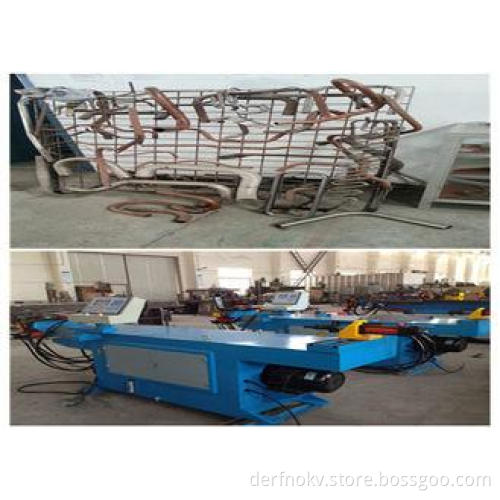

Single Head CNC Pipe Bending Machine hydraulic , steel bender machine

CNC 50 TSR Pipe Bender Machine for Furniture / Sports Equipments Pipe,Mitsubishi Servo Motor

Usage and Features:

It is used to produce a series of bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.

A. Application and with imported PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer.

B. Application imported color touch-screen 10.4” of TAIWAN, graph operating system, leading interface designs and several kinds of functions tentacles controllable, so as to easy to operate, automatic to memory and reserve, automatic to alarm and so on.

C. This machine is equipped with the most advance CNC computer digital control system and SMS synchronized follow bending system.

D. Complete with automatic counting system, finished products display on panel.

E. Complete with precision worm gear and worm drive system, which controlled by separated servo system to finish feeding, rotating and bending.

F. Machine frame body adopts tower structure, welded by square steel pipe and steel plate, high strength and steady.

G. Ideal and perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function.

H. Mould material use high quality steel, hardness high and long life use, the hardness not below HRC50;mould include bending mould, clamp mould ,guided mould etc.

Clamp die designed with parallelogram, diagonal clamping, fix tight; guided die adopt three (four) disc type chuck structure, clamp high.

I. Feeding axis complete with imported high speed linear motion components;

Rotary Axis complete with precision worm gear and worm drive system, which controlled by separated electrical servo motor to meeting each function, feeding, rotating and bending; Bending Arm built with hydraulic transmission system;

J. Adopt imported international well-known brand; switch and button from Schneider of France; intermediate relay from OMRON; servo motor and controller from Mitsubishi of Japan.

K. With automatic alarm system and automatic counting system.

Main Technical Data:

MODEL		CNC 50 TSR
Max.Bending Dia×Thickness(mm)		φ50×3
Max.Bending Radius(mm)		50-260
Bending Angle		0-190
Max. Feeding Length(mm)		2500
Feeding Axis	Speed (mm/sec)	0--1000
	Accuracy(mm)	±0.1
Rotate Axis	Speed(°/s)	0--150
	Accuracy(°)	±0.1
Bending Axis	Speed(°/s)	0--60
	Accuracy(°)	±0.1
Voltage		380V/50Hz
Power		4Kw
Machine Size(LWH) (mm)		425012001350
Weight(kg)		2000
Air Pressure		0.5--0.7MPa

Main Electric Parts and Brand:

Item	Brand
Touch Screen	color touch-screen 10.4” of TAIWAN
PLC	Mitsubishi, Japan
Feeding Motor and Drivers	Mitsubishi, Japan
Rotate Axis Motor and Drivers	Mitsubishi, Japan
Button	Tend, Taiwan
Oil Pump	Yuken,Japan
Hydraulic Valve	Biostone, American
Oil Pump Motor	Wuxi Lake, China
Switch	Mingwei,Taiwan
Intermediate Relay	Omron, Japan
Contactor	Schneider, German/ SHIHLIN,Taiwan
Proximity Sensor	Kaifang,Taiwan/Yingming,Taiwan/Shihlin,Taiwan
Cylinder (Vascular Clamp/Carrier)	AIRTAC,Taiwan
Encoder	NEMICON,Japan
