Juice / Water Bottle Filling Machine SS304 For 500 ml Carbo
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China Mainland |
|---|

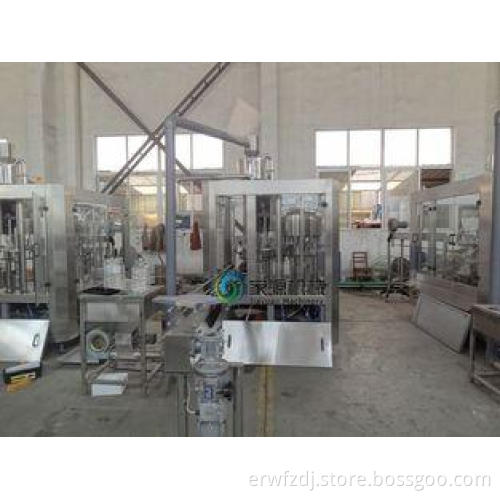

Juice / Water Bottle Filling Machine SS304 For 500 ml Carbonated Drink Barrel
Quick Detail:
1. Product: CGF8-8-3 water filling machine manufacturer
2. Main Material: SS304
3. Production capacity: 3000bph(500ml)
4. Usage: Fill pure/mineral/distilled water and so on
5. Dimension: 1900*1400*2200mm
6. Warranty: 1year free
CGF8-8-3 water filling machine manufacturer
Description:
CGF8-8-3 water filling machine manufacturer
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
4. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan'sMitsubishi, France Schneider, OMRON
Application:
This machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
integrates bottle washing, filling and capping into one monobloc unit.
Specifications:
CGF8-8-3 water filling machine manufacturer
|
1.Electrical elements |
|
|
PLC |
MITSUBI |
|
Frequency converter |
MITSUBI |
|
Touch screen |
WEINVIEW |
|
Contactor |
DELIXI |
|
Cylinder |
Airtac |
|
Pump |
Nan fang pump |
|
Switch |
Omron |
|
Electromotor |
Wannan Motor |
|
2.Suitable bottle: |
Round or square plastic bottle |
|
Bottle size |
250-1500ml |
|
Bottle body:Φ90mm, |
Bottle height H:150-320mm |
|
Bottle neck diameter: |
Φ20-Φ35mm |
|
Cap: |
Plastic screw cap |
|
DiameterΦ25-Φ35mm |
Cap height:15-25mm |
|
3.Main parameters: |
|
|
Production capacity: |
500ml,3000BPH |
|
Position: |
washer8,filler8,capper3 |
|
Filling temperature: |
Normal filling,gravity filling |
|
Air pressure: |
0.6mpa(self-prepare) |
|
4.Motor powder: |
|
|
Main motor: 1.5kw |
Capper loading: 0.09kw |
|
Washing pump: 0.37kw |
Filling pump: 0.37kw |
|
Convoying motor:0.55kw |
Air conveyor motor:0.75kw |
3) Pictures:
Washing head
Filling head
Capping head
Competitive Advantage:
Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.
1. The company around 110 KM away from Shanghai, has convenient traffic.
2. The company was established in 1999, has rich experience.
3. We are an CE&SGS certified company.
4. We can produce kind of filling&packing machine, such as
- Bottled water production line
- Carbonated soft drinks production line
- Hot-fill juice and tea production line
- 5 Gallon bottled water production line
- Water treatment machine and packing machine
5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
