Electric 4 in 1 Automatic Bottle Filling Machine For Fruit Juice
Quick Detail:
- Capacity: 6000 bottles per hour
- CE, ISO certificate
- Designed power supply: AC/380V/50HZ/3PHASE
- Sterilizing water rinser, pure water rinser, filler, capper 4-in-1 monoblock
- Fully automatic, no bottle no filling, no cap machine will stop.
- Customizable
Automatic SUS304/316 6000BPH CGF18-18-18-6 4-in-1 bottle water filling machine
Description:
- The bottle water filling machine is suitable for 500-2000ml PET bottle filling, this machine can realize one machine different size, just change the different star wheels.
- The bottle water filling machine capacity can be 1000-20000bph.
- We strictly manufacture and manage according to IOS9001:2000 System. And we sincerely welcome customers all over the world visit our company, or browse, visit our website. Any requirement, please contact us via E-mail, we will provide beat service for customers.
- This 4-in-1 bottle water filling machine: used for pure water, mineral water, drinking water filling into PET bottles, or glass bottles.
- The bottle water filling machine is Wash-filling-capping 4-in-1 unit.
A. bottle water filling machine—double washing part
- All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
- 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
- 304 stainless steel washing pumps
- First rinsing position is sterilizing water rinser, second rinsing position is purified water rinser.

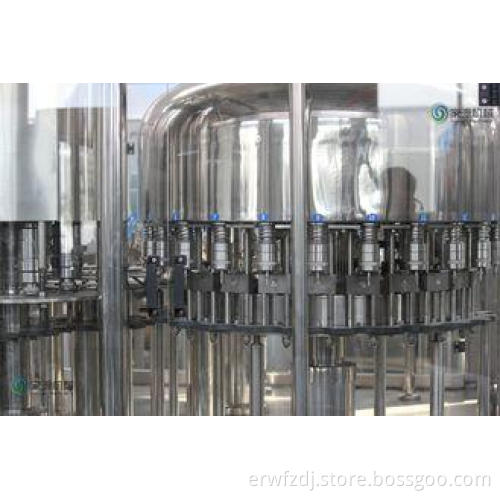

B. bottle water filling machine--Filling part
- Filling temperature is adjustable.
- Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
- All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- No bottle no filling
C. bottle water filling machine--Capping part
- l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- l All 304stainless steel construction
- l No bottle no capping,
- l Automatic stop when lack of caps
Application
This machine can be used for filling non-carbonated liquid beverage with normal or middle temperature into PET bottles and capping it automatically.
- Juice filling with normal temperature or middle temperature.
- Pure water
- Mineral water
Specifications:
|
Model: |
CGF18-18-18-6 |
|
Capacity:500ml(b/h) |
4000-6000 |
|
Suitable Bottle Height(mm) |
150-320 |
|
Suitable Bottle Body Diameter(mm) |
φ50-φ100 |
|
Suitable Cap Shape |
Plastic Screw Cap |
|
Power: (W) |
5.03 |
|
Filling Temperature: |
Room Temperature |
|
Water Consumption for Washing Bottle(kg/hr) |
1600 |
|
Gas Consumption(m3/min) |
0.3 |
|
Size L×W×H (mm) |
2450×1800×2200 |
|
Total Weight:(kg) |
3500 |
|
Power Supply |
380V/50HZ |
Competitive Advantage:
- So this machine has three steps, first is washing, second is filling, third is sealing the bottle.
- Low power consumption, better material SUS 304, SUS 316.
- Small size, simple structure, low investment
- Auto complete line, need less worker.
- The three functions of bottle washing, filing and capping are composed in one body of the machine.
- The whole process is automatic, no bottle no filling, no cap, machine will stop.
