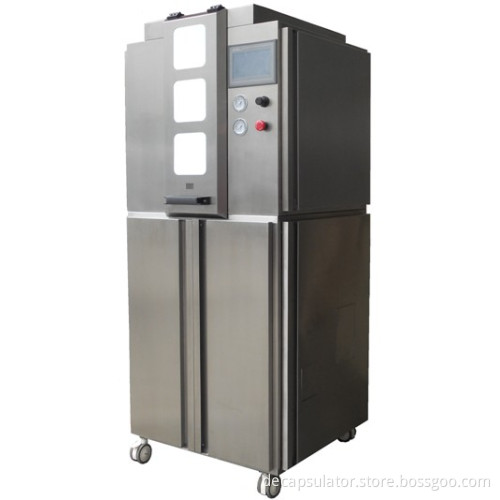

Auto Capsule Open Powder Taking Machine CS5

Description:

Capsule opening and powder extracting machine is applied to recycling medicine for the model No.0-4 capsule is made from stainless steel and is a convenient cleaning equipment. It can promptly find and dispose which prevent handling the medicine mixing lots problem concentrately than before,which improve the working efficiency and lower the labour power so that it is made more standard and reasonable for the whole working process.Both multifunctional special holding-down plate and open capsule can be separately operated,which make the extruding capsule open it again and also let the capsule shell and medicine powder auto-separate and store.

Main Technical Parameter:

1.Model No:CS5

2.Air Source:4-5bar(0.4-0.5Mpa)

3.Weight:150kg

4.Dimensions:750*760*1750mm

5.Efficiency:1-5000tab/min

6.Applicable capsules:00#/0#/1#/2#/3#/4#/5#/SA/SB/SC and all

7.Working volt:AC100-240V,50-60HZ

8.Control voltage:DC24V

9.Rated power:120W

10.Hold capacity:8.5L

11.Volume Flow:0.25m^3/min

12.HCT:PS*V≤45bar*L(EU standards)

13.Working Pressure:≤5bar(0.5Mpa)

14.Design pressure:10bar(1.0Mpa)

15.Test pressure:12bar(1.2Mpa)

We are professional design,produce and sell perfect partner of medicine produce progress,like decapsulator and capsule filling machine parts,all have good quality and best service.

Welcome to inquiry.
