dusting bag filter of PP,PE,PPS,P84,PTFE,Glass fiber,antistatic
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| function | filteration and sepration |
|---|---|
| Material | PP PE PTFE PPS NOMEX |
Detail Description

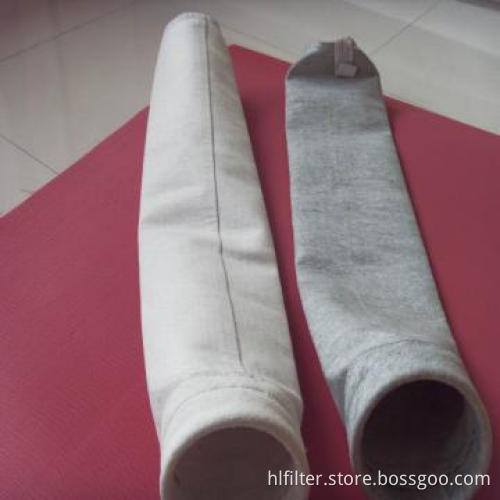

HL FILTER dust collector filter bag media is made of various synthetic fabrics, and each fabric has its own unique function. HL FILTER can supply the technical proposal to meet customers need according to working condition and the bag\'s application.
1. Vacuum cleaner fabric dust bag : PTFE dust collector filter bag Specification :
| Item | PTFE needle felt filter bag |
| Material | PTFE |
| Weight | 700g/m2 |
| Thickness | 1.8mm |
| Air permeanbility (mm/s@200Pa) | 120 |
| Breaking strength (Warp) | >1800N/5×20cm |
| Breaking strength (Weft) | >1800N/5×20cm |
| Breaking extension (warp) | <30% |
| Breaking extension (weft) | <30% |
| Working temperature | 240°C |
| Peak temperature | 260°C |
| Finishing | PTFE impregnation,Laminating, coating |
3. Cement industry bag filters : PTFE needle felt dust bag application :
Applicable to high-corrosive gas and high temperature , such as chemical industry , coal-fired boiler , waster incineration industry and non-ferrous metal production .
4. Bag Filter : Risistance of synthetic fibres to the influence of chemicals and to the temperatures
| HL Dusting Bag | Continuous temperature | Peak Temperature | Description | Resistance to Acids | Resistance to Alkalis | Resistance to Oxidation | PH Value |
| Polypropylene | 90°C | 95°C | PP | Excellent | excellent | restricted | 1~14 |
| Polyacrylyitrile Homopolymer | 125°C | 140°C | DT | good | good | good | 3~11 |
| Polyester | 150°C | 150°C | PE | restricted | moderate | good | 4~12 |
| Polyphenylensulfide | 190°C | 200°C | PPS | Excellent | excellent | moderate | 1~14 |
| Polymide | 240°C | 260°C | P84 | good | moderate | good | 3~13 |
| Polytertrafluoroethylene | 250°C | 280°C | PTFE | Excellent | excellent | excellent | 1~14 |
| Glass fiber | 260°C | 300°C | BQ | good | good | good | 3~11 |
5. HL dust collector filter bag construction, production line and some application show :
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 1000pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 7days once confirming the order |
| FOB Port | Guangzhou,Nanjing,Ningbo,Shanghai |
| Loading Info | by sea/by air/by courier |
| Packing Info | Packing term : inner with platic bag, outer with carton box or woven bag |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
