Contact NowBasic Specification
| carton size | Length: 240~500mm. wide 160~380mm. height:150~400m |
|---|---|
| Packing Size | Length: 240~500mm. wide 160~380mm. height:150~400mm |
| Size | L4600*W11000*H2200mm |
| Power | 6 KW |
| Type | Bottles, Carton |
| Material | Carbon Steel |
| Type | Other |
| Voltage | 220 V |
| Driven Type | Electric |
| Automatic Grade | Automatic |
| Application | Apparel, Beverage, Chemical, Commodity, Food, Juice, Machinery & Hardware, Medical, Other, Textiles, Water |
| Packaging Material | Other, Wood |
| Speed | 0-45 cartons/minute |
Detail Description

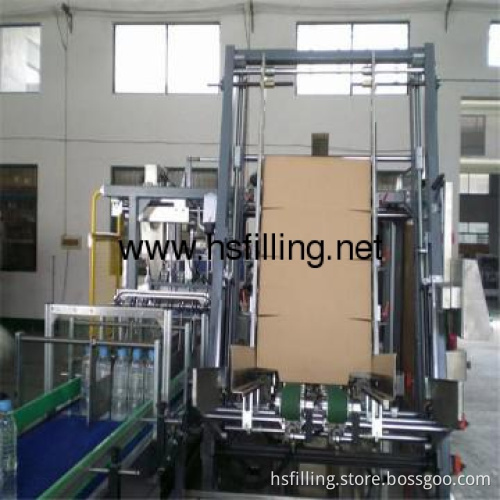

Wrap-around Case Packaging Equipment Manufacturer
Ø The equipment composes of container indeed, container spacing, carton sucking &
conveying, carton folding, glue & sealing, pneumatic and electric control
Ø According to customers’ requirements, containers from filler are divided into several lanes by
indeed conveyor, and move to the distributing lane of packing device, divided into 4 lanes by the spacer, which is driven by servo motor (optional 3 or 6 lanes according to different packing form);
Ø Blanks are synchronously taken beneath each group of products by the sucking & conveying
device, and products will be packed by the folding and glue sealing device;
Ø Each units are synchronized by 5 servo motors and mechanical adjustment, ensuring
products packing accurate and artistic.
