Small Bottle Water Filling Machine
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Grade | full automatic beverage filling machine |
|---|---|
| water bottle material | PET/plastic small bottle |
| Filler | pure water, mineral water, spring water, non-gas |
| Filling valve | multivalve filler |
| Beverage machine type | rotary filling machine |
| Capacity | 80 sets/year |
| Quantity | 80 sets/year |
| Power | 3.58kw |
| Type | Other |
| Automatic | Y |
| Liquid Type | Cream, Juice, Milk, Others, Perfume, Shampoo, Tea, Water, Wine |
| Speed | 2000-28000b/h |
| Capacity | 2000-18000b/h |
| Bottle Material | Plastic |
| Size | 0.25-2L bottle |
| Volume | 0.25-2L bottle |
Detail Description

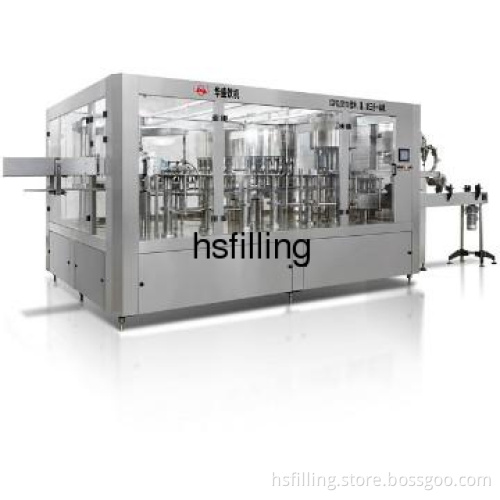

Small Bottle Water Filling Machine
Hsfilling company provide the following beverage filling machine line;
--soda water/carbonated beverage filling machine line
--pure water/spring water/distilled water/non-carbonated water filling machine line
--5 gallon/19L barreled filling line
--hot juice/fruit juice 3-in-1 beverage filling machine line
--pulp juice/grainly juice/flesh juice 4-in-1 beverage filling machine line
--oil /sauce/ketch up filling machine line
--beer filling machine line
--alcohol filling machine line
--PET bottle beverage filling line
--glass bottle filling machine line
Technical Parameters:
Water Bottling Plant Flow Chart:
1.water bottle making machine
2.water treatment plant
3.air conveyor
4.water bottle washing filling capping machine
5.bottle conveyor
6.air dryer
7.shrink sleeve labeling machine+shrink tunnel
8.date printer machine
9.bottle shrink wrapping machine
Any further info for Small Bottle Water Filling Machine, pls contact me
Hsfilling company provide the following beverage filling machine line;
--soda water/carbonated beverage filling machine line
--pure water/spring water/distilled water/non-carbonated water filling machine line
--5 gallon/19L barreled filling line
--hot juice/fruit juice 3-in-1 beverage filling machine line
--pulp juice/grainly juice/flesh juice 4-in-1 beverage filling machine line
--oil /sauce/ketch up filling machine line
--beer filling machine line
--alcohol filling machine line
--PET bottle beverage filling line
--glass bottle filling machine line
Technical Parameters:
|
|
|
|
|
|
Model |
Number of washing filling and capping |
Production capacity |
Applicable bottle specifications (mm) |
Power(kw) |
Dimension(mm) |
CGF14/12/5 |
14, 12, 5 |
2000-4000 |
0.25L-2L |
3.58 |
2100x1400x2500 |
CGF18/18/6 |
18, 18, 6 |
5000-7000 |
4.68 |
2460x1720x2650 |
|
CGF24/24/8 |
24, 24, 8 |
8000-12000 |
6.58 |
3100x2100x2650 |
|
CGF32/32/8 |
32, 32, 8 |
12000-15000 |
9.68 |
3500x2500x2650 |
|
CGF40/40/10 |
40, 40, 10 |
15000-18000 |
9.68 |
4600x1800x2650 |
|
CGF50/50/12 |
50, 50, 12 |
20000-24000 |
10.8 |
5200x4500x3400 |
|
CGF60/60/15 |
60, 60, 15 |
25000-28000 |
11.28 |
6500x4500x3400 |
Water Bottling Plant Flow Chart:
1.water bottle making machine
2.water treatment plant
3.air conveyor
4.water bottle washing filling capping machine
5.bottle conveyor
6.air dryer
7.shrink sleeve labeling machine+shrink tunnel
8.date printer machine
9.bottle shrink wrapping machine
Any further info for Small Bottle Water Filling Machine, pls contact me
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 45 Day(s) |
| Sample Available | NO |
| Delivery Details | within 45 days after received 30% T/T deposit |
| FOB Port | Shanghai |
| Loading Info | Sea transport-Small Bottle Water Filling Machine |
| Packing Info | PE-Film, wooden case-Small Bottle Water Filling Machine |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
