Drinking water Bottling Machine Prices

Drinking water Bottling Machine Prices


Hsfilling company() provide the following beverage filling machine line;

--soda water/carbonated beverage filling machine line
--pure water/spring water/distilled water/non-carbonated water filling machine line
--5 gallon/19L barreled filling line
--hot juice/fruit juice 3-in-1 beverage filling machine line
--pulp juice/grainly juice/flesh juice 4-in-1 beverage filling machine line
--oil /sauce/ketch up filling machine line
--beer filling machine line
--alcohol filling machine line
--PET bottle beverage filling line
--glass bottle filling machine line

Products Introduction:

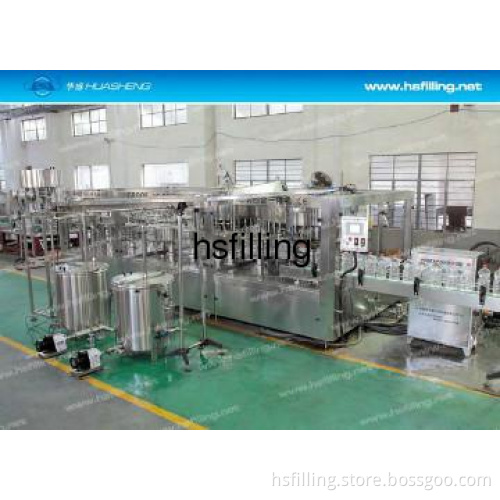

The CGF series automatic bottle water filler machine suitable for  flavored water and other non-carbonated beverage as well. The CGF Wash-filling-capping 3-in-1 machine can finish all the process from empty bottle rinsing, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and high cost effective.


Technical Parameters:

Model	Number of washing filling and capping	Production capacity Bottle per hour(0.5L)	Applicable bottle specifications (mm)	Power(kw)	Dimension(mm)
CGF14/12/5	14, 12, 5	2000-4000	0.25L-2L =50-108 mm H=170-340mm	3.58	2100x1400x2500
CGF18/18/6	18, 18, 6	5000-7000	4.68	2460x1720x2650
CGF24/24/8	24, 24, 8	8000-12000	6.58	3100x2100x2650
CGF32/32/8	32, 32, 8	12000-15000	9.68	3500x2500x2650
CGF40/40/10	40, 40, 10	15000-18000	9.68	4600x1800x2650
CGF50/50/12	50, 50, 12	20000-24000	10.8	5200x4500x3400
CGF60/60/15	60, 60, 15	25000-28000	11.28	6500x4500x3400

Water Bottling Plant Flow Chart:
1.water bottle making machine
2.water treatment plant
3.air conveyor
4.water bottle washing filling capping machine
5.bottle conveyor
6.air dryer
7.shrink sleeve labeling machine+shrink tunnel
8.date printer machine
9.bottle shrink wrapping machine

Any further info for Drinking water Bottling Machine Prices, pls contact me
