Rinser, Filler, Sealer 3 in 1, Bottled Soda Water Filling Machine
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Use | Soda Water Filling Machine |
|---|---|
| Filling Capacity | 2000-20000BPH(0.5L) |
| Applicable Bottle | 0.25-2L PET Bottle |
| Filling Type | Isobaric Filling |
| Processing | Rinsing Filling Sealing 3 in 1 |
Detail Description

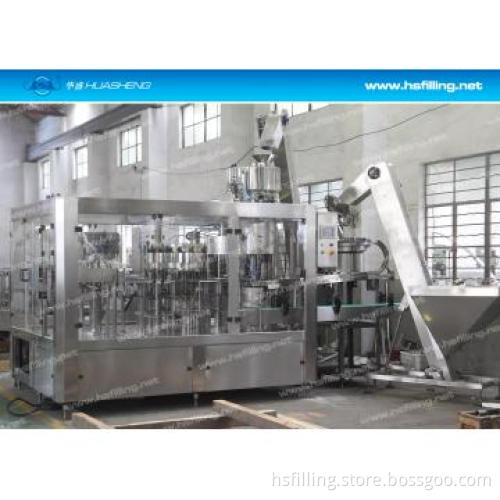

DCGF Series 3 in 1 Soda Water Filling Machine
Products Introduction:
- DCGF series Automatic Soda Water Filling Macchine is used for filling carbonated beverages in PET bottle,such as Coca-Cola, Fenda, Sprite and gas-bearing mineral water.
- It adopts rinsing/filling/capping 3-in-1 technology.
- Filling Capacity: 0.2-2L PET bottle
- Filling Principle: Gravity Hot Filling Type.
* We supply the complete Bottled Soda Water Plant:
1- Water Treatment System
2- Carbonation System
3- Rinsing/Filling/Capping System
4- Labeling & Packing System
* Glass Bottle Beverage Filling Machine picture & video, please check our web: www.hsfilling.net
Main technology:
Model |
Number of washing filling and capping |
Production capacity |
Applicable bottle specifications (mm) |
Power(kw) |
Dimension(mm) |
DCGF14/12/5 |
14, 12, 5 |
2000-3000 |
0.2L-2L Bottle |
3.58 |
2100x1400x2500 |
DCGF18/18/6 |
18, 18, 6 |
4000-6000 |
4.68 |
2460x1720x2650 |
|
DCGF24/24/8 |
24, 24, 8 |
6000-8000 |
6.58 |
3100x2100x2650 |
|
DCGF32/32/8 |
32, 32, 8 |
10000-12000 |
9.68 |
3500x2500x2650 |
|
DCGF40/40/10 |
40, 40, 10 |
13000-15000 |
50-108 mm |
9.68 |
4600x1800x2650 |
DCGF50/50/12 |
50, 50, 12 |
16000-18000 |
10.8 |
5200x4500x3400 |
|
DCGF60/60/15 |
60, 60, 15 |
20000-22000 |
11.28 |
6500x4500x3400 |
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 1 Set |
| Lead Time / Delivery Time | 60 Day(s) |
| Sample Available | NO |
| Delivery Details | According Customer\'s Requirements |
| FOB Port | Shanghai |
| Loading Info | Sea Transportation |
| Packing Info | Standard Export Package |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
