Automatic 3 in 1 PET Bottled Juice Filler
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Use | Juice Filler |
|---|---|
| Filling Capacity | 2000-20000BPH(0.5L) |
| Filling Liquid | Various Hot Drinks, Juice,Tea |
| Processing | Rinser Filler Sealer 3 in 1 |
| Filling Type | Gravity Hot Filling |
| Liquid Type | Juice |
Detail Description

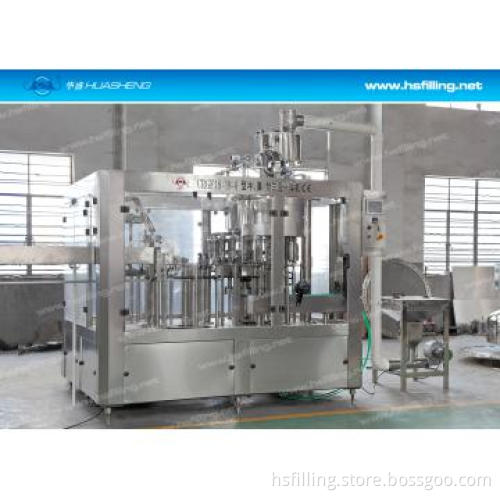

RCGF Series Rinser,Filler,Sealer 3 in 1 Bottling Juice Machine
Products Introduction:
- RCGF series Bottling Juice Mach is used for filling kinds of hot drinks in PET bottle, such as Orange Juice, Apple Juice, Tea, other hot drinks....
- It adopts rinsing/filling/capping 3-in-1 technology.
- Filling Capacity: 0.25-2L PET bottle
- Filling Principle: Gravity Hot Filling Type.
Main Technology
| Model | Number of washing filling and capping | Production capacity Bottle per hour(0.5L) |
Applicable bottle specifications (mm) | Power(kw) | Dimension(mm) |
| RCGF14/12/5 | 14, 12, 5 | 2000-3000 | 0.25L-2L 50-108 mm H=170-340mm |
3.58 | 2100x1400x2500 |
| RCGF18/18/6 | 18, 18, 6 | 4000-6000 | 7.61 | 2460x1720x2650 | |
| RCGF24/24/8 | 24, 24, 8 | 6000-8000 | 8.2 | 3100x2100x2650 | |
| RCGF32/32/8 | 32, 32, 8 | 10000-12000 | 9.18 | 3500x2500x2650 | |
| RCGF40/40/10 | 40, 40, 10 | 13000-15000 | 10.28 | 4600x1800x2650 | |
| RCGF50/50/12 | 50, 50, 12 | 16000-18000 | 11.28 | 5200x4500x3400 | |
| RCGF60/60/15 | 60, 60, 15 | 20000-22000 | 11.28 | 6500x4500x3400 |
* We supply the complete Bottle Juice Production Line:
1- Water Treatment System
2- Juice Mixing System
3- Filling System
4- Labeling & Packing System
* More Juice Filling Machine picture & video, please check our web: www.hsfilling.net
We also supply Glass Bottle Juice Filling Line, pls check below:
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 1 Set |
| Lead Time / Delivery Time | 60 Day(s) |
| Sample Available | NO |
| Delivery Details | According Customer\'s Requirements |
| FOB Port | Shanghai |
| Loading Info | Sea Transportation |
| Packing Info | Standard Export Package |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
