PET bottle Beverage Filling Machine
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Use | Beverage Filling Machine |
|---|---|
| Application | Drinking Water |
| Capacity | 2000-28000BPH(500ml) |
| Applicable Bottle | 0.2-2L PET bottle |
| Filling Type | Gravity Filling in Room Temperature |
Detail Description
CGF Series PET bottle Beverage Filling Machine
Machine Description
- CGF Series s3-in-1beverage filling machine adopt Rinsing/Filling/Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304.
- It is used for filling kinds of non-carbonated water, such as still water,mineral water,flavored water,spring water...
- Its usual prodcution capacity is in 2000-28000bph, 0.2-2L PET bottle is available.
- Room temperature filling. Gravity Filling Principle.
* We supply the complete beverage prodcution line at the same time:
1- Water Treatment System
2- Rinsing/Filling/Capping System
3- Labeling & Packing System
Main Technology
Model |
Number of washing filling and capping |
Production capacity |
Applicable bottle specifications (mm) |
Power(kw) |
Dimension(mm) |
CGF14/12/5 |
14, 12, 5 |
2000-4000 |
0.2L-2L D=50-108 mm |
3.58 |
2100x1400x2500 |
CGF18/18/6 |
18, 18, 6 |
5000-7000 |
4.68 |
2460x1720x2650 |
|
CGF24/24/8 |
24, 24, 8 |
8000-12000 |
6.58 |
3100x2100x2650 |
|
CGF32/32/8 |
32, 32, 8 |
12000-15000 |
9.68 |
3500x2500x2650 |
|
CGF40/40/10 |
40, 40, 10 |
15000-18000 |
9.68 |
4600x1800x2650 |
|
CGF50/50/12 |
50, 50, 12 |
20000-24000 |
10.8 |
5200x4500x3400 |
|
CGF60/60/15 |
60, 60, 15 |
25000-28000 |
11.28 |
6500x4500x3400 |

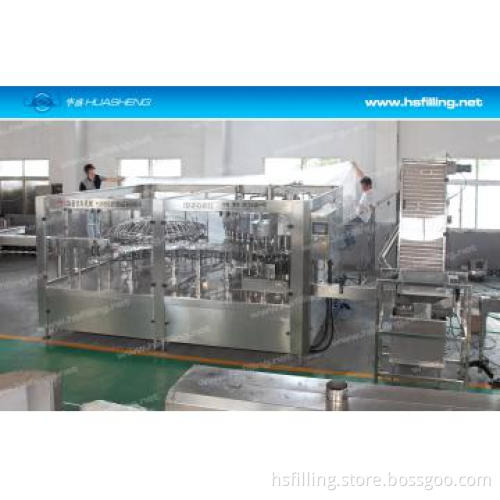

CGF32/32/10 3-in-1 Beverage Filling Machine. (Client from Thailand)
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 40 Day(s) |
| Sample Available | NO |
| Delivery Details | Detailed delivery time according the machine you ordered. |
| FOB Port | Shanghai |
| Loading Info | Sea Transportation |
| Packing Info | Standard Export Package |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
