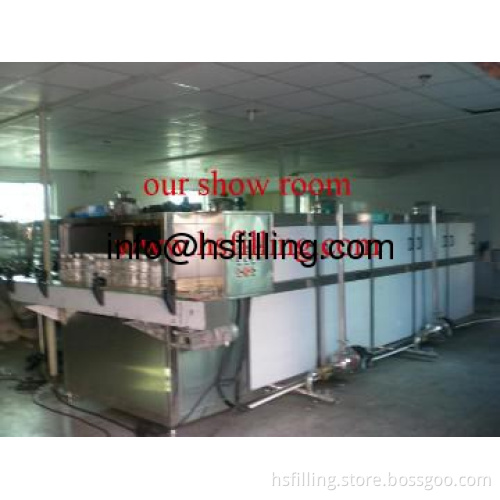

Automatic spray cooling sterilization machine

Automatic spray cooling sterilization machine

Product introduction:

This machine is used in heat-resistant polyester bottles of tea drinks, hot filling, polyester bottle of carbonated drinks canned production line, high temperature can make the filling of the cool tea beverages to 36 to 40 °C, low temperature filling carbonated drinks up to 36 to 40 °C, remove water on the surface of the polyester bottle, keep body dry clean, convenient for bottled line after the labeling and packing operation.
Production 5000-20000 bottles per hour, spray time is about 15 to 20 minutes.


Using cooling four-paragraph processing, equipment first paragraph 72 °C hot water cooling; The second paragraph uses the spray cooling tower circulating water cooling;
Third paragraph using tap water circulation cooling;
The fourth section adopts pure water to wash the bottle, prevent the bottle from the stains. Device equipped with automatic chlorine pumps, quantity can be adjusted according to fill water chlorination. Bottle design into the bottle temperature is 85 °C, the temperature of 40 °C.


Working principle:

The cycloidal pinwheel reducer frequency conversion motor, then through the chain drive active square shaft rotation, on the square shaft sprocket drive the plastic chain plate movement, the bottle through the conveyor chain into the spray cooling machine is plastic chain plate conveyor after space space cooling period are cooled to the required temperature. In the cooling section above a neat and orderly arrangement of the spray nozzle, the spray pump for the cooling water, cooling was carried out on the bottle. Cooling of the first paragraph as the second section of the frame of the water in the tank with water (in the cooling water has been bottle\'s heat to heat up, if the temperature is less than set temperature, the heating device and the appropriate heating), cooling water into the frame after the water tank, the circulating pump to send to the cooling tower (bring your own by the user) outside the workshop after cooling, recycling use. The second and third section of the cooling water cooling area respectively is: the second paragraph uses the third section of the frame of the water in the tank, the third paragraph using cooling tower of circulating water after cooling, with the fourth period of pure water at the same time,
If the water shortage, then appropriate add some water. Section 4 for purified water spray device, the purpose is to make the cooling of the bottle appearance without water mark after drying, the segment after spray water, fall into the water tank for the use of the third paragraph. Quantitative dosing pumps are set in the second paragraph, quantitative join hypochlorous acid, within the cooling water for cooling water sterilization.

Machine made in stainless steel (with the exception of the machine feet, bearings, motors, etc), and the chassis can be set up around the window, to open at the top of the design structure, convenient maintenance; Spray nozzle in U.S. Spraying systems, the company manufacturing technology, spray evenly; Cooling tunnel sump tank is equipped with high and low level control alarm and circulating water filter unit; Chain plate using resistance heat supply network chain Rexnord companies in the United States, board face level off, wear resistance; Each is equipped with temperature and pressure display instrument; Equipped with spraying water circulating pump and dosing pump.


Segment number	Cooling medium
The first paragraph	72°C hot water cooling
The second paragraph	Chlorine water spray cooling
The third paragraph	Chlorine water and supplement of tap water cooling
The forth paragraph	Pure water spray rinsing
