Automatic Bottle Filling Machine
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Machine Name | Automatic Bottle Filling Machine |
|---|---|
| Machine Material | Stainless steel 316 |
| Capacity | 500ml |
| Power | 3 kw |
| Automatic | Y |
| Bottle Material | Glass, Metal, Others, Plastic |
| Size | 2100x1400x2500mm |
| Liquid Type | Cream, Juice, Milk, Perfume, Shampoo, Tea, Water, Wine |
| Volume | 200-2000ml |
| Type | Beverage Packaging Equipment |
| Quantity | 1 set |
| Speed | 0-20000bph |
| Capacity | 0-20000bph |
Detail Description

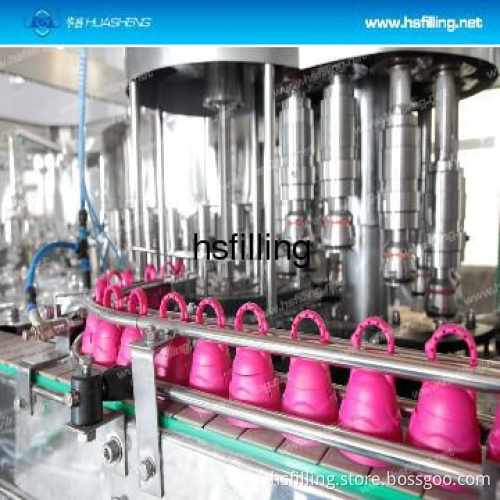

Automatic Bottle Filling Machine
Usage:
Automatic bottle filling machine is introduced advanced foreign technology such as washing, filling, capping technology. It is used in filling hot fruit juice, tea ,milk and other drinks, To replace some parts, it can also be used in filling normal temperature filling.
Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.
7. Equipped with a constant temperature system, temperature controlled and circumfluenting automatically.
Technical Data:
Usage:
Automatic bottle filling machine is introduced advanced foreign technology such as washing, filling, capping technology. It is used in filling hot fruit juice, tea ,milk and other drinks, To replace some parts, it can also be used in filling normal temperature filling.
Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.
7. Equipped with a constant temperature system, temperature controlled and circumfluenting automatically.
Technical Data:
| Model | Number of washing filling and capping | Production capacity Bottle per hour(0.5L) |
Applicable bottle specifications (mm) | Power(kw) | Dimension(mm) |
| RCGF14/12/5 | 14, 12, 5 | 2000-3000 | 0.25L-2L 50-108 mm H=170-340mm |
3.58 | 2100x1400x2500 |
| RCGF18/18/6 | 18, 18, 6 | 4000-6000 | 7.61 | 2460x1720x2650 | |
| RCGF24/24/8 | 24, 24, 8 | 6000-8000 | 8.2 | 3100x2100x2650 | |
| RCGF32/32/8 | 32, 32, 8 | 10000-12000 | 9.18 | 3500x2500x2650 | |
| RCGF40/40/10 | 40, 40, 10 | 13000-15000 | 10.28 | 4600x1800x2650 | |
| RCGF50/50/12 | 50, 50, 12 | 16000-18000 | 11.28 | 5200x4500x3400 | |
| RCGF60/60/15 | 60, 60, 15 | 20000-22000 | 11.28 | 6500x4500x3400 |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1 Set |
| Lead Time / Delivery Time | 70 Day(s) |
| Sample Available | NO |
| Delivery Details | We invite you come here to check machine before shipment. |
| FOB Port | Shanghai |
| Loading Info | Ship from Shanghai, China Port |
| Packing Info | Shrink film and wooden box |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
