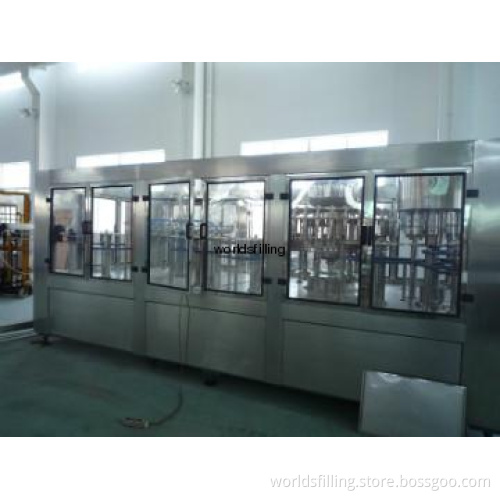

RCGF24-24-8 PET Bottle Hot Juice Filling Machine China

Filling machine

Filler

3 in 1 filling machine

Juice filling machine

Ice tea filling machine

Hot filling machine

Beverage filling machine

Filling machine china

Filling machine zhangjiagang

Features: ---- Filling Machine

1. This equipment is automatic washing filling capping three in one machine. It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling Part is mainly composed of filling tank, filling valves (hot and pressure filling), bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, filling pump, vacuum pump, etc.

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.
Main Technical Specifications (@500ml bottle): ---- Filling Machine

Worldsfilling Product Catalog: ---- Filling Machine

1. Water treatment system (purified water and mineral water)

2. 3 in 1 monoblock purified & mineral water filling machine

3. 3 in 1 monoblock juice & tea filling machine

4. 3 in 1 monoblock carbonated drink filling machine

5. Monomer type filling machine – for water, CSD, juice, tea, oil, wine, beer, etc.

6. 3 to 5 gallon barrel water filling machine

7. Pop-top can filling machine

8. Finishing & packing system – labeler, printer, PE film shrinking packager, case packager, palletizer, pallet wrapper, etc.

9. PET bottles & caps making system – injection machine & bottle blowing machine

10. Beverage blending system – fruit juice & carbonated drinks

11. Other auxiliary equipment

Your final product? Your bottle & cap’s material & size? Your estimated production rate requirement?

Tell us please, our pleasure to serve you.

Worlds Filling Company expects the opportunity to cooperate with you
