3 IN 1 Beverage Filling Machine
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Filling Machine | Liquid Filling Machine |
|---|---|
| Power(w) | 5 |
| Weight | 2600 |
| Packaging Material | Wood |
| Voltage | 220V |
| Driven Type | Electric |
| Packaging Type | Case |
| Material | Stainless Steel |
| Number Of Filling Valves | 12 |
| Application | Beverage |
| Type | Pressure Filling Machine |
| Automatic Grade | Automatic |
Detail Description

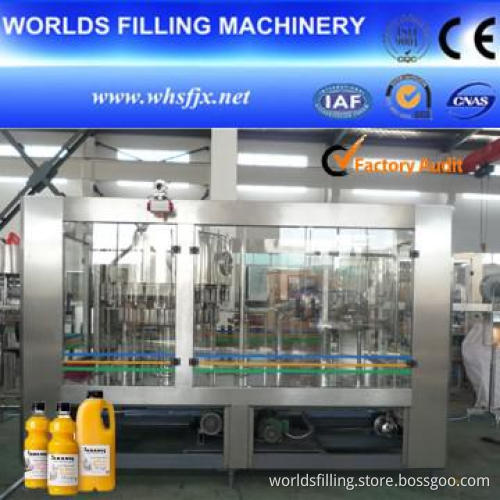

3 in1 Beverage Filling Machine integrates washing, filling, capping into one unit, It is applied to fill hot fruit juice. Tea and other beverage into thermal proof PET bottle by changing few parts. This equipment can realize to asepsis filling as it equipped with constant temperature controlling system.
PRIMARY FEATURES
1)The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions, by changing a few parts, it can meet for the need of production of different types of bottle easily.
2)The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle\'s screw thread, Nozzles in the grab guarantee the complete wash of the interior of the bottle.
3)The advanced micro negative-pressure filling technology used in this machine makes the filling quick, steady and accurate, the beverage-holding tank is fully-closed and also, temperature-control device and OIP washing interface are installed.
4)This machine can meet all the technical requirements for hot-filling below 9centi degree, the before capping, bottle-mouth will be cleaned by RO, washing device.
5)Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly, capping is reliable and do no harm to the cap.
6)Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
7)All parts that have direct contact with the beverages are made of high quality stainless steel, and many critical components, such as the decelerator, the motor, are from famous international companies.
PRIMARY FEATURES
1)The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions, by changing a few parts, it can meet for the need of production of different types of bottle easily.
2)The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle\'s screw thread, Nozzles in the grab guarantee the complete wash of the interior of the bottle.
3)The advanced micro negative-pressure filling technology used in this machine makes the filling quick, steady and accurate, the beverage-holding tank is fully-closed and also, temperature-control device and OIP washing interface are installed.
4)This machine can meet all the technical requirements for hot-filling below 9centi degree, the before capping, bottle-mouth will be cleaned by RO, washing device.
5)Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly, capping is reliable and do no harm to the cap.
6)Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
7)All parts that have direct contact with the beverages are made of high quality stainless steel, and many critical components, such as the decelerator, the motor, are from famous international companies.
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | NO |
| Delivery Details | Zhangjiagang Worlds Filling Machiery |
| FOB Port | Shanghai |
| Loading Info | ocean shipping |
| Packing Info | Wooden Case |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
