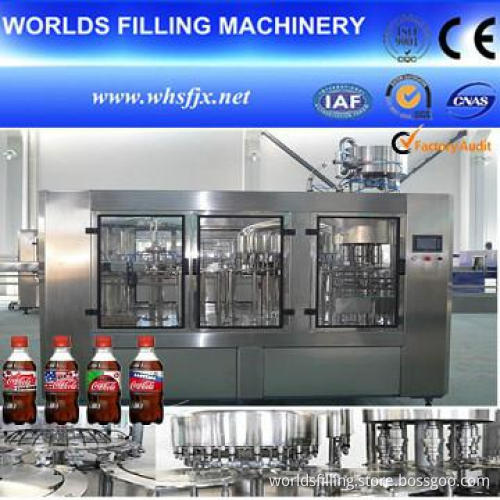

3 IN 1 Full Automatic Carbonated Soft Filling Machine
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Automatic carbonated filling machine | cola filling machine |
---|---|
Weight | 8500 |
Voltage | 380v/50hz |
Packaging Material | Wood |
Number Of Filling Valves | 40 |
Driven Type | Electric |
Packaging Type | Case |
Material | Stainless Steel |
Application | Beverage |
Type | Pressure Filling Machine |
Automatic Grade | Automatic |
Power(w) | 10kw |
Detail Description
Description
1). Compact structured, good-looking, easy to operate and highly automated.
2). Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws and conveyor chains.
3). Bottles are transferred in the manner of clamping neck. Bottles can be changed through some replacement of steel clamps, which instead of adjusting the height of machine.
4). Rinser-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
5). Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.
6). Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
7). Replacement between CO2 and O2 ensure almost no O2 in bottle, long filling pipe reduce O2 content to null.
8). Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.
9). High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
10). Equipped with CIP clean-in-place.
11). Bottom splint which fixed in the feed-out starwheel goes down in the manner of screw. Bottles can be changed without adjustment of height of conveyor chain.
12). Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
13). Highly effective cap sorting and feed in system is protective for feed in and cap absence.
14). Equipped with overload system to safeguard machine and operators.
15). Touch screen operation.
16). Main electronic components( touch screen, PLC and frequency inverter) are imported products.
17). Components of pneumatic system are FESTO.
- The bottles will be automatically goes into the machine from conveyors by air fan.
- The bottles will be washed, filled, capped automatically.
- For more informations, please leave your inquiry here, we will send you videos for good presentation.
Additional Information
Payment Terms | L/C, T/T |
---|---|
Minimum Order | 1set |
Lead Time / Delivery Time | 25 Day(s) |
Sample Available | NO |
Delivery Details | After Down Payment of 3 IN 1 Carbonated Drink Filling Machine |
FOB Port | Shanghai |
Loading Info | Marine Transportation of 3 IN 1 Carbonated Drink Filling Machine |
Packing Info | Export Wooden Case of 3 IN 1 Carbonated Drink Filling Machine |
Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
