D5 YFD5638K Electric Therapy Bed
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Business Type | Manufacturer |
|---|---|
| OEM | Available |
| Gurantee | One year |
| CE, ISO | Approved |
| Size | L2200*1060*460-760mm |
| Detachable or Not | Yes |
| Foldable or Not | No |
| Material | Aluminium Alloy, Cast Iron, Iron, Plastic, Stainless Steel |
Detail Description

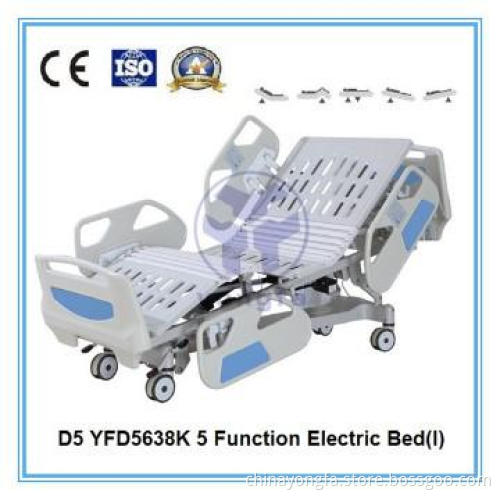

D5 YFD5638K Electric Therapy Bed
General Introduction:
This general care electric bed is specially designed for patient care during the process of treatment and recovery.
By adopting high level international technology and on basis of ergonomics science,
this general care electric bed alleviates the nurse and attendant’s workload remarkable
and provide patient great comfort.
All the position is achieved by automatic motor control which generates a high efficiency for patient care.
Specification:
Product |
5-Function Electric Therapy Bed |
Model |
YFD5638K (Type I) |
Function |
HI-LOW: 440-760mm |
Back section adjustable from 0-75° | |
Knee section adjustable from 0-40° | |
Trendelenburg from 0- -12° | |
Reverse trendelenburg 0-12° | |
Overall size |
(L*W*H): 2200*1060*(440-760)mm |
Features: |
Durable frame: made of cold-rolled steel plate and tube, electro-coating & powder-coating treatment |
Platform with soft ABS jionts to get smooth curve | |
Detachable quality ABS headboard, with optional colors | |
Four pieces of detachable ABS side-rails, rising and down easily controlled by gas spring, convenient for patient go onto and get off beds. | |
Quiet and robust electric actuators provide reliable operation | |
Build-in control embedded inside the railing panel | |
CPR handle accessible from both sides of the bed | |
Easy use center-controlled locking wheels, φ125mm | |
Weight Load |
Fully tested sturdy construction capable of taking a maximum user weight of up to 250kg |
Motor |
Chinese motor, LINAK, L&K |
Pictures:
Platform with soft ABS jionts to get smooth curve
With control built in side rail, the patient can get access to the operation button easily from both sides
Central locking system with 125mm diameter castor
Five Function Electric Bed in assembly workshop
Packing of Hospital Bed
Standard Accessories List
Headboard/Footboard |
1 set |
Handrails |
1 set |
I.V pole |
1 piece |
I.V pole holes |
4 pieces |
Build-in rail control |
2 pieces |
Wheels |
4 pieces |
Drainage Hook |
2 pieces |
Bedboard |
1 set |
Bed frame |
1 set |
Fender wheel |
4 pieces |
Different Accessories for your choice
Office Environment:
Show Room
Flow Chart:
Certifation of our Hospital Bed :
Any Question Please Feel Free to Contact me
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P |
|---|---|
| Minimum Order | 2PCS |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | YES |
| Delivery Details | 30 working days after receipt of downpatment |
| FOB Port | Shanghai |
| Loading Info | According to your requirements |
| Packing Info | Standard Export Carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Mainland China, Middle East, North America, Oceania, Southeast Asia, Western & Southern Europe |
