PP bags PE waste plastic granulator
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| category | granulating machine |
|---|---|
| type | Plastic Granulators |
| warranty | 1 year |
| Weight | 9T |
| Power(w) | 90 |
| Product Capacity | 300 |
| Type | Recycling Granulator |
| Screw Design | Single-Screw |
| Voltage | 220 |
| Material | PP/PE |
Detail Description

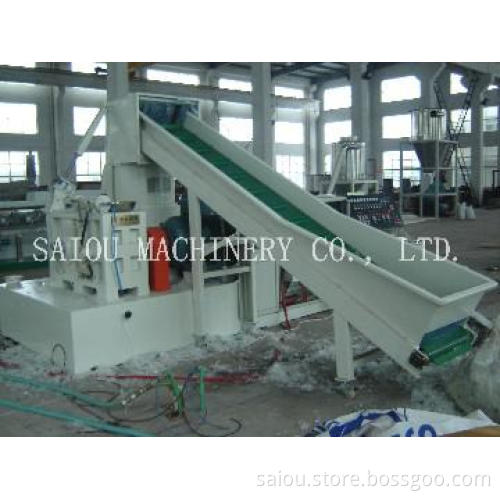

This film plastic granulator is used to pelletize the recycling scraps to granules. But this granulator has an agglomerator tank on extruder, it is suitable for all kinds of plastic film, such as PE, HDPE, LDPE, LLDPE.
The capacity we can supply is from 100kg/h to 500kg/h.
waste PP bags PE films plastic granulators
waste PP bags PE films plastic granulators include below:
No. |
Item |
1 |
Belt conveyer |
2 |
Crushing barrel |
3 |
Extruder |
4 |
Die head and screen changing device |
5 |
Water ring cutter |
6 |
Vibrating screen |
7 |
Vertical dewatering machine |
8 |
Air drying system |
9 |
Cyclone hopper |
configration of plastic granulators :
Model |
Screw diameter(mm) |
L/D |
Capacity(kg/h) |
Main motor power(kw) |
Total power(kw) |
Line length(m) |
PE-100 |
100 |
25:1 |
100 |
90 |
120 |
12 |
PE-200 |
120 |
25:1 |
200 |
110 |
150 |
15 |
PE-300 |
150 |
25:1 |
300 |
160 |
200 |
18 |
The general process of granulators is as following:
1) Putting into the feeder----Extruding ---- water cooling ---- drying----cutting into granulator
By regulating the rotation speed of extruder and altering screw structure it is applicable to manufacture different plastic profile, like PE PP PS ABS PVC and polyolefin Modificationand granulation: Being applicable to the different plastic material co-mixing, modification and reinforcing granulation.
2) It can make granules from pe pp flakes, film or bottles and so on. Our capacity is from 100kg/h to 500kg/h
3) With rotation feeder, the pe pp flakes will get into the screw even and continuously, our motors, tempreture controller and inverters are made by world famous brand, such as Siemense, Omron, RKC, FUJI, and so on. Our screw and barrels are 38CrMoALA, nitrogen treatment. With double screen exchanger, you can exchange the screen without stopping the machines.
4). With more than 10 years experiences in this field, we are so professional and competitive, welcome to visit our factory, we will show you the running machines here.
