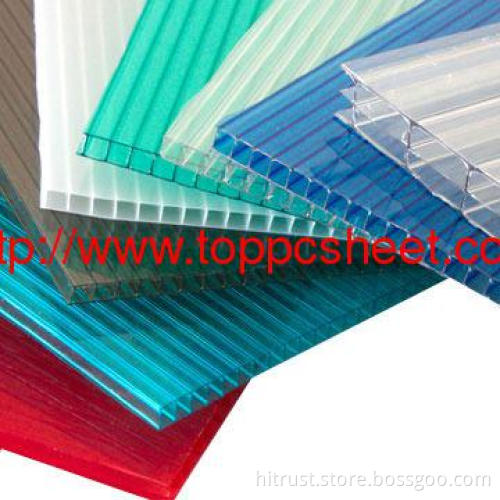

UV coating Polycarbonate hollow Sheet
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Color | Clear, blue, green, bronze, yellow, and customized |
|---|---|
| Material | 100% Sabic or Bayer Resin |
| Type | Other |
Detail Description
UV coating Polycarbonate hollow Sheet is widely application in municipal construction, home decoration, commercial application and other demands. The sheet is high impact strength, UV protection, light and high environmental, aging resistance, graceful appearance, simply processed and installed.
- 50 micron UV layer
Advantage:
- Taiwan company,
- 11 years solid produce experience
- 100% Makrolon PC resin from Bayer in Germany
- Certified by ISO 9001:2000,
- 10years warranty
- Italy Union UV-PC co-extrusion lines (5lines).
- UV co-extrusion for long life-span
- Light transmission rate up 80-90%.
Customized colors and dimensions available upon request.
Material:From Germany Bayer,Sabic
-
Production line:5 line, Workshop requirement: ISO9001:2000, ISO14001
Quality:100% virgin bayer material, 50 micron UV layer,10 years warranty,approved by ISO9001: 2000,SGS,RoHS,delivery time 7-15 days
Specification:
Structure:twin-wall,
Max width: 2100mm;
Length (special width, color acceptable)
Standard thickness: 4mm 6mm 8mm 10mm,12mm, 14mm, 16mm
Color: clear, blue, lake blue, bronze, silver grey, green, opal white. Red etc.PRODUCT LIST
Item
Standard size
(mm)
Thickness
(mm)
Weight
(kg/ m2)
Min curving radius
(mm)
General color
PC twin-wall
hollow sheet
Length: 6000
Width: 2100
1220
4
1.0
700
Clear
Opal
Bronze
Blue
Lake blue
Grass green
Porcelain white
Silver grey
Pearl white
5
1.1
875
6
1.3
1050
8
1.5
1400
10
1.7
1750
Note: Special colors and specifications can be customized.
TECHNICAL DATA
Characteristics |
Unit |
Data of PC twin-wall hollow sheet |
Light transmission |
% |
40 ~ 82 |
Impact strength |
J/m |
2.1 ~ 2.3 |
Coefficient of thermal expansion |
mm/m °C |
0.065 |
Heat conductivity |
W/m2 °C |
3.0 ~ 3.9 |
Service temperature |
°C |
-40°C~+120°C |
Tensile strength |
n/mm2 |
≥60 |
Bending strength |
n/mm2 |
100 |
Bending elastic modulus |
mpa |
2400 |
Tensile stress at break |
mpa |
≥65 |
Elongation at break |
% |
≥100 |
Sound insulation effect |
db |
20 decibel decrease for 10mm thick sheet |
APPLICATION
1) Roofing light sheet and sunshade for office building, department store, hotel, stadium, school, amusement center, hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
5) Anti-riot shield, bullet resistant material, Bank ATMs.
6) Conservatories, agricultural greenhouses, zoos, botanical gardens.
7) Industrial Roofing and Glazing
8) Swimming Pools roofing/cover/sheet
Additional Information
| Payment Terms | T/T, L/C, Western Union |
|---|---|
| Minimum Order | 3 tons |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Both sidewith PE film |
| FOB Port | Shanghai |
| Loading Info | By sea |
| Packing Info | By piece loading into container |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
