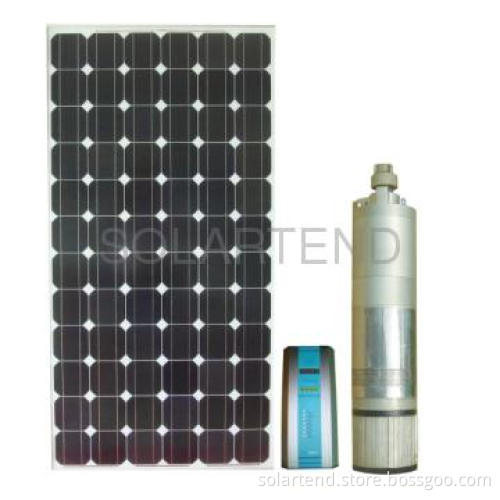

solar water pump, submersible water pump

SPECIFICATION:

1. Rated Power:600W
2. Peak Flow:1100 liters/h
3. Rated Voltage: 110V
4. Maximum Lift:100m
5. Diameter of the Pump: 6 inches
6. Diameter of the outlet:1.5
7. Solar Panels needed: TBD by the lift customers required

APPLICATION:

1. Agriculture irrigation
2. Domestic water supply
3. Barren hill treatment
4. Ecological manaement
5. Livestock water suppy
6. Soil and water erosion protection

FEATURES:

• Piston Pump Structure
Adopting the three-plunger-style design, we apply the piston pump\'s principle into the design of submersible pump.

• Water Film Lubrication
New designs of water film lubrication can greatly increase the working efficiency by decreasing piston friction.So no oil is needed, less maintance, lower cost.

• Filtration Structure
Our piston pump applies new type of three-layer sand filtration structure.

• Specialized Controller
The controller adopted DC current inverter software control
technical, gently start, smaller current.Optimal controller algorithm\'s application improves the equipment efficiency 10% to 15% higher. System can self-control flow rate and lift under different solar radiation condition.

• Super High Efficiency
The efficiency of our piston pump is up to 85%; the average power utilization is higher than 92%; the average efficiency of the whole pumping sytem is higher than 55%, which is three times higher than the already existing pumping systems.

• High Lift
We developed pumps with different capacity and lift, the highest lift is more than 160 m.

• High Stability
No battery needed, at the same time the system is equiped with advanced functions such as energy tracking control, automatic water shortage protection, overflow protection, frost protection and intelligent fault protection ,etc. All of these make the whole system more intelligent and stable.

• Specialized Controller
The controller adopted DC current inverter software control
technical, gently start, smaller current.Optimal controller algorithm\'s application improves the equipment efficiency 10% to 15% higher. System can self-control flow rate and lift under different solar radiation condition.
