Solar pump/micro inverter 6kw 12v 220v Off grid solar power inverter
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Output Power | 6000W |
|---|---|
| Grid Type | Off-grid |
| Start Way | Soft start |
| Packing Size | 620*270*215mm |
| Input Voltage | DC12V |
| Output Voltage | AC220V |
| Output Current | <2.5A |
| Output Frequency | 60Hz/50Hz |
| Type | DC/AC Inverters |
| Output Type | Single |
| Zone Of Application | China |
| Output Power | 1 - 200Kw |
| Weight | 14 KG |
Detail Description
Solar pump/micro inverter 6kw 12v 220v Off grid solar power inverter
1.Protective Function:
l Low voltage alarm & Shutdown &recovery
l Over-voltage protection &recovery
l Overload protection
l Over-temperature & Humidity protection
l Short circuit protection
l Reverse Polarity protection
l Soft start
l Auto. Reset after being in protected
l Grounding protection.
2.Features
>Pure sine wave
>High efficiency >90%
>Saving-energy
>High quality (CE RoHS IP30 SGS GMC approved)
>Portable & light
>Input & output isolation
> Built-in Cooling Fan
>Muti-protection function
>Outside shell make of aluminum alloy,good to therming dissipine to esure the woking life more long than others
>THD<3% far less of the industrial standard THD<5%
>Full power (The working power of 6000w power inverter is enough 6000w)

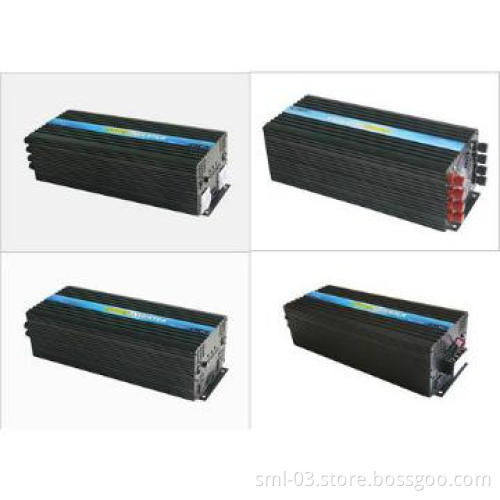

3.Product Display and Practical application :
4.Basic Technical Data of this 6000Watt Inverter
| Model | P6000-12-220 |
| Rated Power | 6000Watt |
| Peak Power | 12000Watt |
| DC Input Voltage | 12V |
| AC Output Voltage | 220VAC±5% |
| No-load Current | <1.7A |
| AC Output Frequency | 50HZ±1%/60HZ±1% |
| AC Output Waveform | Pure sine wave |
| Waveform Distortion | THD<3%(Linear load) |
| Full Load Efficiency | >86%(DC13V) |
| DC Input Voltage Range | 10.6V-15.5V |
| Low Voltage Alarm | 10.5±0.3V |
| Low Voltage Protection | 9.5±0.2V |
| Over Voltage Protection | 16±0.5V |
| Low Voltage Recovery | 11.8±0.3V |
| Over Voltage Recovery | 15.7±0.3V |
| Work Temperature | –10°C ~50°C |
| Storage Temperature | –30°C ~70°C |
| Humidity | 20%-90%RH without condensation |
| Work Altitude | ≤1200m |
| Size | 545*199*146mm/pc |
| Net Weight | 14±0.05kg/pc |
| Package Size | 665*285*240mm(1pc) |
| Gross Weight |
17.2±0.1kg/pc |
Additional Information
| Payment Terms | L/C, T/T, D/P, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | Sample about 3 days after receipt of prepaid payment .Mass production about 20 days after receipt of prepaid .30% down payment ; 70% before shipment. |
| FOB Port | Guangzhou,Shanghai,Shenzhen |
| Loading Info | According to your demand by any transportation.We will send you tracing number immediately. |
| Packing Info | Solar pump/micro inverter 6kw 12v 220v Off grid solar power inverter:1 Piece Per Carton, Inverter with Bubble Bag |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
