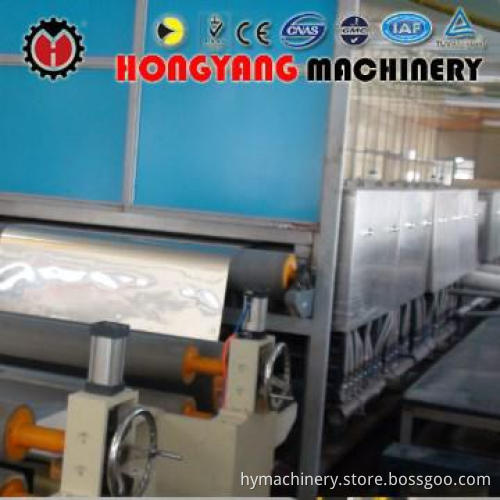

Aluminum roll Color Coating product Line

• Design Specification
• Coating material：Aluminum Coil

Operation width:800～1000mm
Material thickness:0.08～0.6mm
Aluminum coil ID:φ150～505mm
Aluminum coil OD:Maximal   φ1400mm
Aluminum coil weight:Maximal  3000kg
Coating : Hot hardenability resin or plasticity resin(like polyester/fluorocarbon resin/Crylic acid )

Specification	Fluorocarbon resin	Polyester	Crylic acid
Coating viscidity (4 cups)	60～120	60～110	55～110
Thickness of the dry film (um)	15～25	15～25	15～20
Dry temperature  (board temperature ℃	249～254	210～224	193～210

chemosynthesis transition film:20～100mg/m²

Names of Chemical disposal	Alkaline degrease	Non-chrome Chemical
Notch thickness	3-4%	30-50%
Unit dosage mg/m2	8	1.4

Also can use acidity degrease agent.

1. Oven temperature：150℃～280℃（max.300℃）
2. Heating method：Natural gas heating
3. Temperature controller：PID auto-calculation procedure temperature control
4. Electrification power：210KW

AC380V/3 PHASE/50HZ

1. Air source：

Pressure：5～6kgf/cm²
Air amount：0.2～1m³/min

1. Water source：

Water pressure：0.5～2.0kgf/cm²
Circulating amount：12～20m³/h
Loss amount：1.0～1.5m³/h

1. Design speed：5～30m/min
2. Production speed：5～25m/min（Polyester）

　　　　　　             5～15m/min（Fluorocarbon resin）

1. Size：50,000L×5,000W×6,000H()
2. Equipment weight：80,000kg  ()
