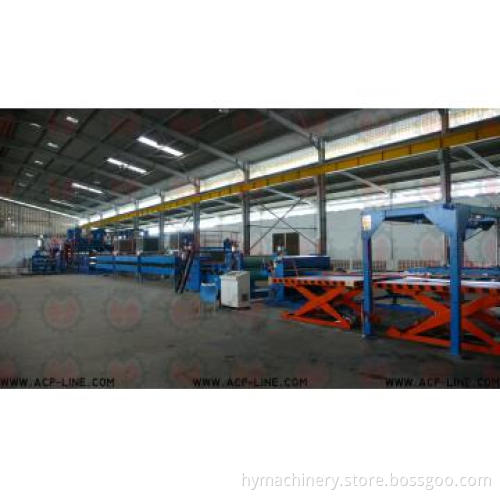

A2 Fireproof ACP Production Line

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Energy saving	Easy operation
Widely applied	5.Convenient in maintan

Detail Description

Feature :
1. energy save .
2. easy operating .
3. High goods percentage .
4. low malfunction .Raw Material
A: PE Material: FR Material
B: Aluminum Material (Colorful-paint Aluminum coil ):
Width:1240~1600mm
Thickness: 0.1~0.6mm
Maximum outer diameter: 1400mm
C. Adhesive Film: Width: 1250~1600mm
Thickness: 0.03~0.05mm
Weight: 60~80Kg/Roll
D. Protecting Film: Width: 1250~1600mm
Thickness: 0.06~0.08mm
Finished Product: Width: 1220~1575mm
Thickness: 2~6mm
Length: According to the customer’s requirement
Speed Rate of Manufacturing: 1~3m/min
6. Total Air Consume: Pressure: 5~7Kgf/cm2
Consume: 0.5~1m3/min
7. Total Water Consume: Pressure: 1~2kg/cm2
Consume: 3 ton/day
8. Size of the Line:
length*width*height: 100m*7.5m*4.5m
9. Total Weight of the Equipments: 100 tons

Additional Information

Payment Terms	T/T, L/C, Others
Minimum Order	1
Lead Time / Delivery Time	120 Day(s)
Sample Available	NO
Delivery Details	FOB
FOB Port	Shanghai
Loading Info	By sea
Packing Info	Export standard plywood package
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
