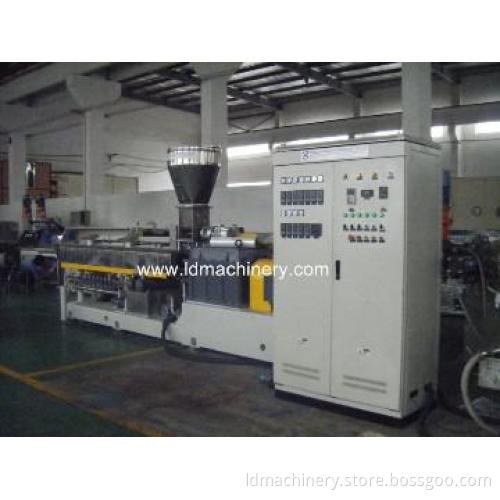

PET parallel twin screws granulating machine
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Original place | China |
|---|---|
| Color | Green |
| Screw design | parallel screws |
| Cutting | Noodle cutting |
| pellet size | 3-5mm |
| Power(w) | 55-132KW |
| Weight | 5000KG |
| Voltage | 380V 3PHASE 50HZ |
| Type | Granulating Production Line |
| Screw Design | Double-Screw |
| Material | PET |
| Product Capacity | 100-500KG/H |
Detail Description
Description:
As we know PET is thinning material, hydrolyzing will be seen during the recycle procedure and it will reduce material viscosity. During the extrusion, inevitable friction and heating will reduce it again so the final granules will come out with dark color and poor transparency.
According to this situation we successfully developed the SHJ Series parallel twin screw extruder which is specially used for granulating. We can use it to make fine granules with recycled PET material.
1. Recycled PET material with devices which can increase the IV transparency and improve crystallization speed.
2. PET recycle characteristic changing device.
Specifications:
Applications:
PET/PE/PS/ABS flakes and etc material to processing modified pelleting
Competitive Advantage:
(1) High distortion with super power motor. PET melting material stick to screw makes big distortion.
(2) Main machine screw applies low and middle rotate speed,avoiding friction heat.
(3) Screw adopts easy plasticizing and transfer type.Low temperature macromolecule unit is adopted in screw .
(4) Screw barrel has two vacuum exits, equipped with super power vacuum pump to satisfy air exhaust and water drainage requests.
As we know PET is thinning material, hydrolyzing will be seen during the recycle procedure and it will reduce material viscosity. During the extrusion, inevitable friction and heating will reduce it again so the final granules will come out with dark color and poor transparency.
According to this situation we successfully developed the SHJ Series parallel twin screw extruder which is specially used for granulating. We can use it to make fine granules with recycled PET material.
1. Recycled PET material with devices which can increase the IV transparency and improve crystallization speed.
2. PET recycle characteristic changing device.
Specifications:
| NO. | Model | capacity |
| 1 | SHJ-62A | 180-300kg/h |
| 2 | SHJ-72A | 300-350kg/h |
| 3 | SHJ-85A | 400-500kg/h |
PET/PE/PS/ABS flakes and etc material to processing modified pelleting
Competitive Advantage:
(1) High distortion with super power motor. PET melting material stick to screw makes big distortion.
(2) Main machine screw applies low and middle rotate speed,avoiding friction heat.
(3) Screw adopts easy plasticizing and transfer type.Low temperature macromolecule unit is adopted in screw .
(4) Screw barrel has two vacuum exits, equipped with super power vacuum pump to satisfy air exhaust and water drainage requests.
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 1 set |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | NO |
| Delivery Details | delivery the machine according to the contract |
| FOB Port | Shanghai |
| Loading Info | By shipping |
| Packing Info | Packaging the machine by wooden case |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
