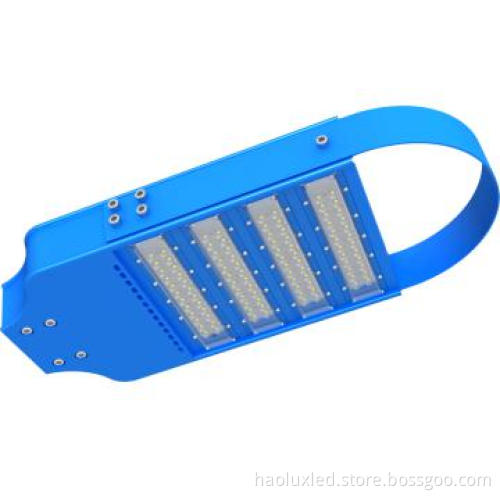

120W LED Streetlight NICHIA LED chips

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Application	Advertising Lighting, Architectural Lighting, Bridge, Car Park, Highway, Highway Lighting, Park, Petrol Station, Sport Yard
IP	IP68
Voltage	90-260V

Detail Description

With new modularly-designed, and themal convection heat management system,

this brandnew street lights \"Raid-leader\" RL101 line achieves significantly efficient heat dissipation: TC (Ta=20 Celsius) <28Celsius ,TC (Ta= 50 Celsius ) < 58Celsius , Tj (Ta= 25 Celsius ) <50Celsius

Efficiency Luminous>110 lm/w , Central Illumination:63Lux/8m (for RL101T120W-A), IP68, only 8Kg weight, life span> 60000 hours. This the best city lighting energy-saving solution

Model No.	HW-RL101T120W
CCT(Color temperature)	2700-3500K/4000-5000K/5500-6500K
Input Voltage	AC95-264V/(DC24V/36V)
Total Luminous Flux	11550 lm
Luminous Efficiency	110 lm/w (A)
Total Power	120W
Operating temperature	20Celsius
TC (Ta=20Celsius	28Celsius
TC (Ta=40Celsius	58Celsius
Power factor	PF0.98
Beam angle	120 degree
Central Illumination 4M	180 lux
Central Illumination 6M	90 lux
Central Illumination 8M	63 lux
IP rating	IP68
LED life span	60000 hours
Housing & optical	ALU+STEEL + PMMA optical lens
Net weight	8000g

Certificates CE, RoHS ,UL pending.

Photometry and IES files are available upon request, AND Verifiable anytime as it \'s directly generated from our in-house LED laboratory

Additional Information

Payment Terms	T/T
Minimum Order	10PCS
Lead Time / Delivery Time	20 Day(s)
Sample Available	YES
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
