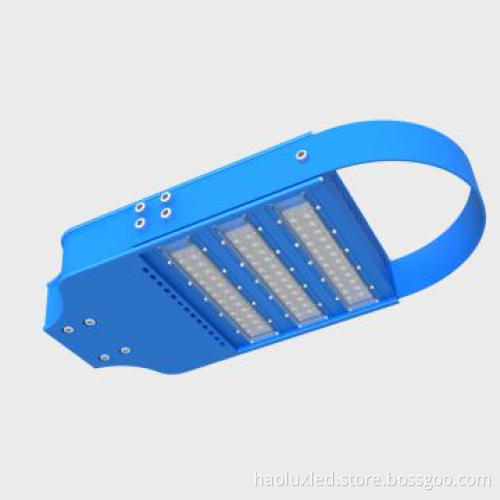

Patent 90W LED Streetlight Japn NICHIA183 LED chips.
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Energy | Wind-solar Hybrid |
|---|---|
| Power Supply | Solar Energy |
| Application | Bridge, Car Park, Highway, Highway Lighting, Park, Petrol Station |
| IP | IP68 |
| Light Source | LED Lamp |
| Voltage | 90-260V |
Detail Description
with new modularly-designed, and themal convection heat management system,
this brandnew street lights \"Raid-leader\" RL101 line achieves significantly efficient heat dissipation: TC (Ta=20 Celsius) <28Celsius ,TC (Ta= 50Celsius ) < 58 Celsius?, Tj (Ta= 25 Celsius?) <50 Celsius.
Efficiency Luminous>110 lm/w , Central Illumination:42Lux/8m? IP68, only 8Kg weight, life span> 60000 hours. This the best city lighting energy-saving solution.
Certificates CE, RoHS ,UL pending.
Photometry and IES files are available upon request, AND Verifiable anytime as it \'s directly generated from our in-house LED laboratory
this brandnew street lights \"Raid-leader\" RL101 line achieves significantly efficient heat dissipation: TC (Ta=20 Celsius) <28Celsius ,TC (Ta= 50Celsius ) < 58 Celsius?, Tj (Ta= 25 Celsius?) <50 Celsius.
Efficiency Luminous>110 lm/w , Central Illumination:42Lux/8m? IP68, only 8Kg weight, life span> 60000 hours. This the best city lighting energy-saving solution.
| Model No. | HW-RL101T90W |
| CCT(Color temperature) | 2700-3500K/4000-5000K/5500-6500K |
| Input Voltage | AC95-264V/(DC24V/36V) |
| Total Luminous Flux | 8580 lm |
| Luminous Efficiency | 110 lm/w (A) |
| Total Power | 90W |
| Operating temperature | 2050 |
| TC (Ta=20) | 28 |
| TC (Ta=40) | 58 |
| Power factor | PF0.98 |
| Beam angle | 120 degree |
| Central Illumination? 4M | 120 lux |
| Central Illumination? 6M | 60 lux |
| Central Illumination? 8M | 42 lux |
| IP rating | IP68 |
| LED life span | 60000 hours |
| Housing & optical | ALU+STEEL + PMMA optical lens |
| Net weight | 8000g |
Certificates CE, RoHS ,UL pending.
Photometry and IES files are available upon request, AND Verifiable anytime as it \'s directly generated from our in-house LED laboratory
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
