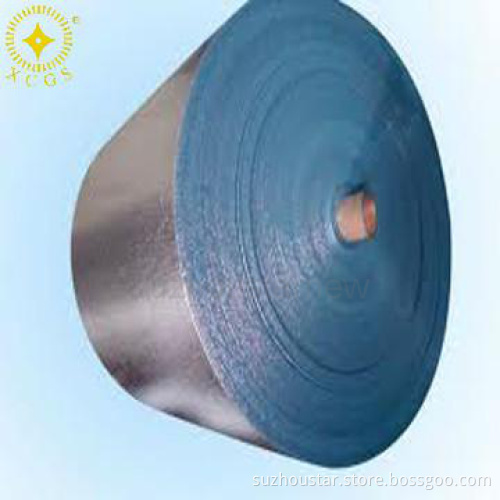

Anti-flaming XPE Foam foil heat Insulation
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| material | foam foil |
|---|
Detail Description
Anti-flaming XPE Foam foil heat Insulation
Heat insulation material
This kind of Insulation Material for Transformer consists of AL / EPE / AL… etc multi- layers of obstruction material. It is an environment friendly product which has good heat preservation and insulation properties. Each layer of the product has good function on abrasion and tearing resistance. The middle layer (EPE) shows strong ability in moisture barrier, oxygen reduction and sound insulation. The outer layer (aluminum foil) also has the advantages like reflecting light and heat and preventing the damages caused by ultraviolet radiation.
Function:
1. The EPE in the middle layer can be made according to our clients’ requirements and the outer layer can be printed with different colors or laminated with polythene.
2. It consists no nocuous substance and accords with the standards of ISO14000. It also does not generate any pollutant or bring any harm to people’s health when being installed and in use.
3. It is a high quality material for warm-keeping and energy-saving, which is the strong opponent of anti-sweat of cold and heat insulation. It insulates any heat media with a
stable and low thermal conductivity.
4. It’s light in weight. It could absorb sound, reduce noise, and provides cushioning function.
5. It’s water and leak proof, anti-flaming, easy to be processed and installed. It’s durable in use and endurable to heat , cold and chemical reaction etc.
Usage:
1. Roof, wall, floor,ceiling,attic,livestock shelter,basement,duct wrappings,cool container liner, and sun-stop cover for vehicle.
2. Shells of air conditioning and water heater.
3. Protective coatings of water pipe and ventilating pipe.
Technical parameters:
Thickness |
6mm |
Reflectivity |
97% |
R-value |
3.5 |
temperature range |
-50 degrees C to 80 degrees C |
Security |
Non-toxicity,non-corrosiveness |
Operation |
It is easy to operate and can raise working efficiency. |
Pliability |
No cracking. |
Durability |
It will not degrade over time. |
Mold and mildew |
No growth |
Linear shrinkage |
None |
Fire rating |
Class A/Class 1 |
AWTA test report of R-value rating for reference:
Packing & Loading:
Other similar material structure as follows
AL/Bubble
AL/Bubble/AL
VMPET/XPE/VMPET
AL/XPE or AL/XPE/AL
AL/Bubble +Bubble/AL
AL/woven cloth/bubble/AL
AL/EPE/AL or VMPET/AL/VMPET
AL/woven cloth/AL or AL/woven cloth
AL/Non-woven cloth or AL/non-woven cloth/AL
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 5000 Square Meter/Square Meters |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| FOB Port | Shanghai,Shenzhen |
| Packing Info | package:Reflective insulation packed with po bags |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Northern Europe, Southeast Asia, Western & Southern Europe |
